Home Integrated Solar Street Light LRC Series Smart Control System SMD Aluminum Outdoor Waterproof IP65 40W warm white Integrated All In One Solar LED Street Light
Hot Products
solar light
Products
All-In-One Solar Led Street Lighting
Smart Control System SMD Aluminum Outdoor Waterproof IP65 40W warm white Integrated All In One Solar LED Street Light Smart Control System SMD Aluminum Outdoor Waterproof IP65 40W warm white Integrated All In One Solar LED Street Light Smart Control System SMD Aluminum Outdoor Waterproof IP65 40W warm white Integrated All In One Solar LED Street Light Smart Control System SMD Aluminum Outdoor Waterproof IP65 40W warm white Integrated All In One Solar LED Street Light Smart Control System SMD Aluminum Outdoor Waterproof IP65 40W warm white Integrated All In One Solar LED Street Light Smart Control System SMD Aluminum Outdoor Waterproof IP65 40W warm white Integrated All In One Solar LED Street Light

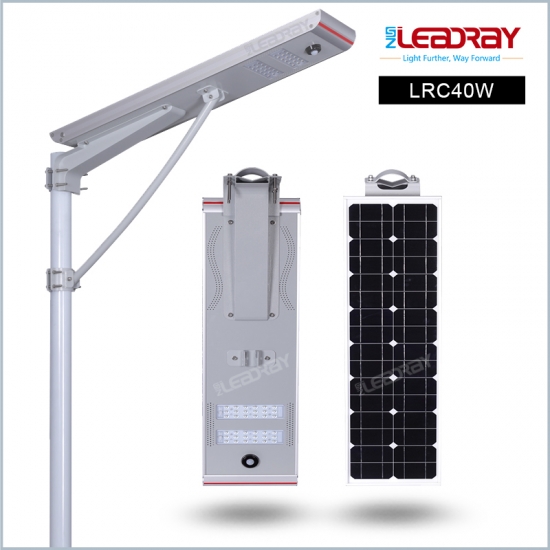

Smart Control System SMD Aluminum Outdoor Waterproof IP65 40W warm white Integrated All In One Solar LED Street Light

  • Model No. :

    LRC40W

  • LED brand :

    LEADRAY

  • LED Power :

    40W

  • Solar Panel Power :

    18V 60W

  • Battery Type :

    Lithium LiFePO4 battery

  • Infrared senor :

    Available

  • Color :

    Silver

  • Port Of Dispatch :

    Qingdao

  • Payment :

    T/T, Paypal, Western Union

  • Original Region :

    China

  • Lead Time :

    3~5 days for samples;15~20 days for bulk
Contact Us
description
40W All-In-One Solar Led Street Light  price solar street light  High Quality Battery 40Watt Full led solar street

Model No: LRC40W
Solar Panel Power: 18V 60W (High efficiency monocrystalline silicon)
Battery Type: High efficiency LiFePO4 Battery
LED Brand: CREE
LED Power: 40W
Luminous Flux: 5600Lm(TYP)
Lifespan: 50,000hrs
Beam Angel: 150x70°
Charging Time: 6-8 hours
Lighting Time(Full Power): 12-14hours
Lighting Time(30% saving mode): 39 hours (3~5 rainy days)
Color temperature: 2700~6500K
Discharging temperature: -20 ℃ to +60 ℃
Charging Temperature: 0 ℃ to +60 ℃
Storage temperature: -20 ℃ to +45 ℃
Mounting Height: 5-7m
Suggested Distance Between Lights: 20-25m
Material: Superior aviation aluminum AL6063-T5

Warranty: 3-5 years

Model No. LRC25W LRC30W LRC40W
Physical Parameters
LED Brand CREE CREE CREE
LED Qty 36 36 36
Power of PV Module (W) 50W 60W 60W
LIFEPO4 Battery Capacity (Ah) 21 25 27
PIR Sensor YES YES YES

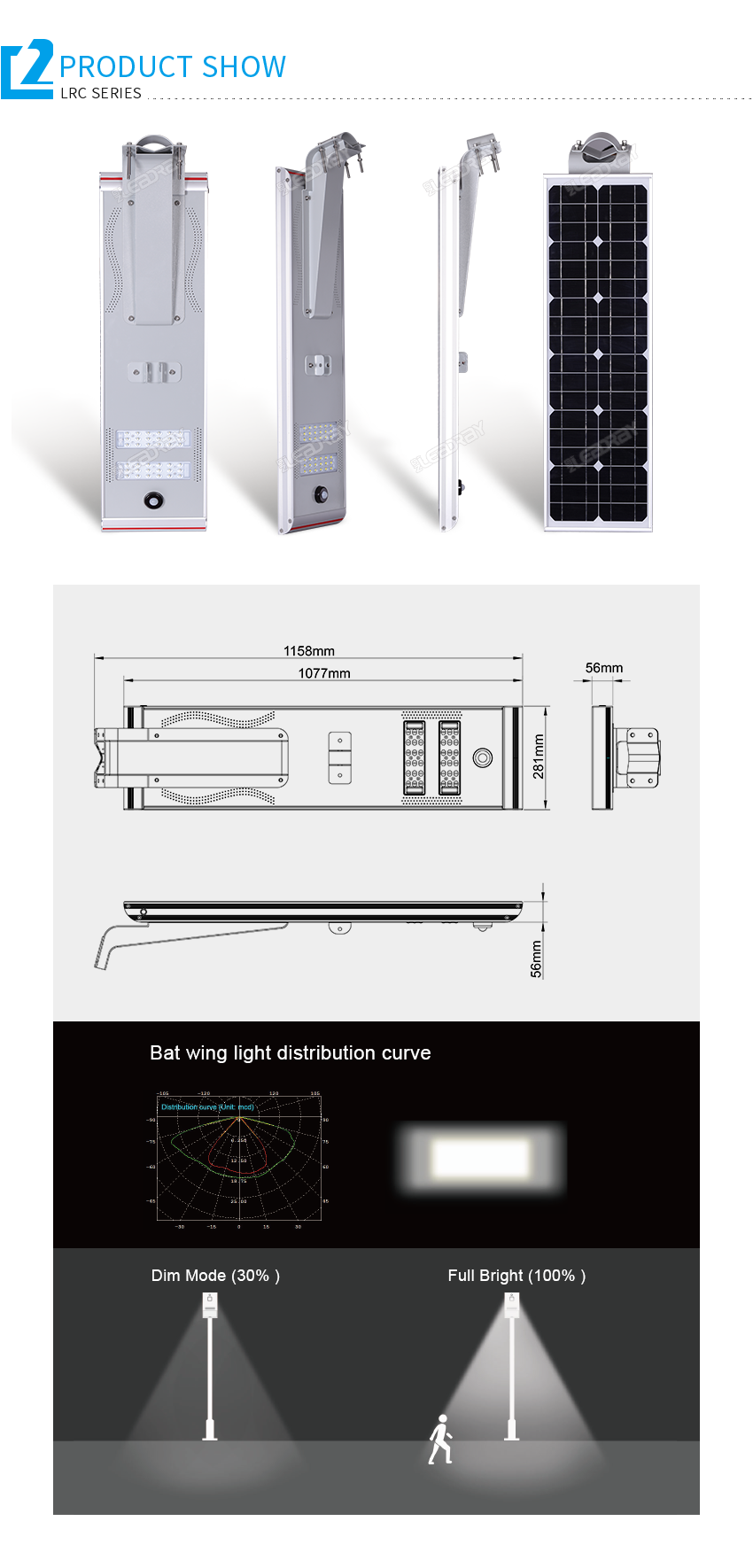

Dimension of Product (mm) 1158*281*56 1158*281*56 1158*281*56
Net Weight (kg) 16.5 17 17.5

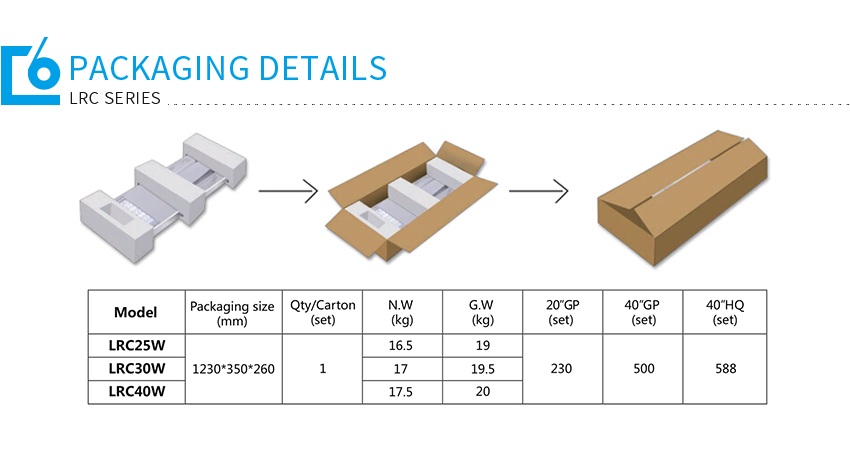

Dimension of Carton (mm) 1230*350*260 1230*350*260 1230*350*260
Gross Weight (kg) 19 19.5 20
Light Parameters
Light Output (W) 25W 30W 40W
Typical Luminous Flux (Lm) 3500 4200 5600
Color Temperature (K) 2T00-6500 2700-6500 2700-6500
Beam Angle (°) 150°x70° 150°x70° 150°x70°
Min. Working Time (Hours) Full Bright 13 13 13
Dim Mode 39 39 39
Environment Parameters
Charging Temperature (°C) 0 °C to +60 °C
Discharing temperature (°C) -20 °C to +60 °C
Storage temperature (°C) -20 °C to +45 °C
Installation
Recommended Dia. of
Top Pole (mm)
76~105 76~105 76~105
Recommended Installation
Height (m)
 		5~7 5~7 5~7
Recommended Installation
Distance (m)
 		18~20 20~25 20~25

solar street light price solar street light High Quality Battery 40Watt Full led solar street


solar street light price solar street light High Quality Battery 40Watt Full led solar street

solar street light price solar street light High Quality Battery 40Watt Full led solar street

solar street light price solar street light High Quality Battery 40Watt Full led solar street

solar street light price solar street light High Quality Battery 40Watt Full led solar street

solar street light price solar street light High Quality Battery 40Watt Full led solar street

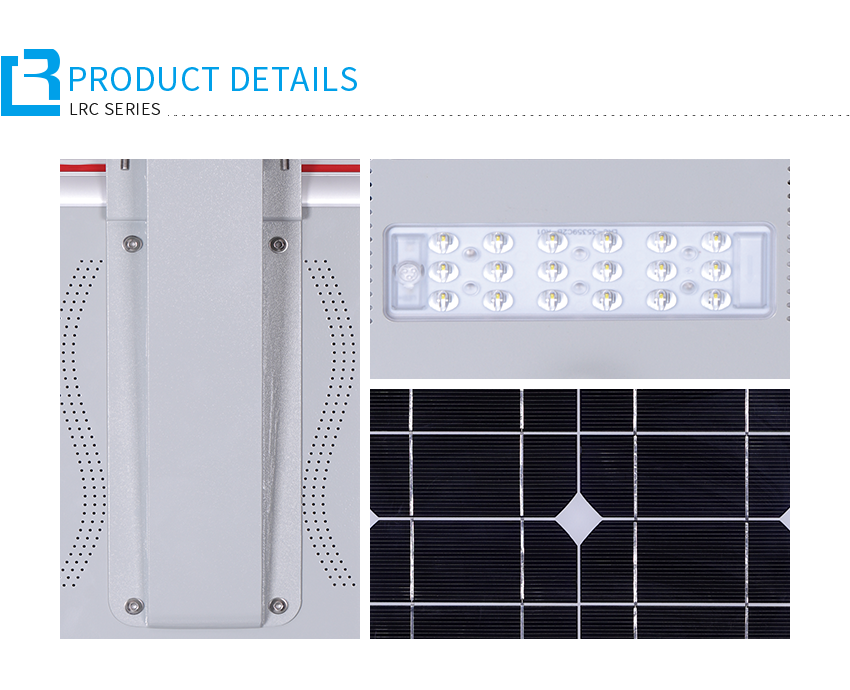

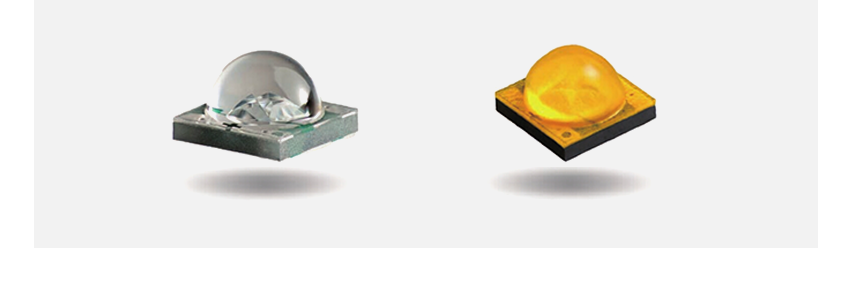

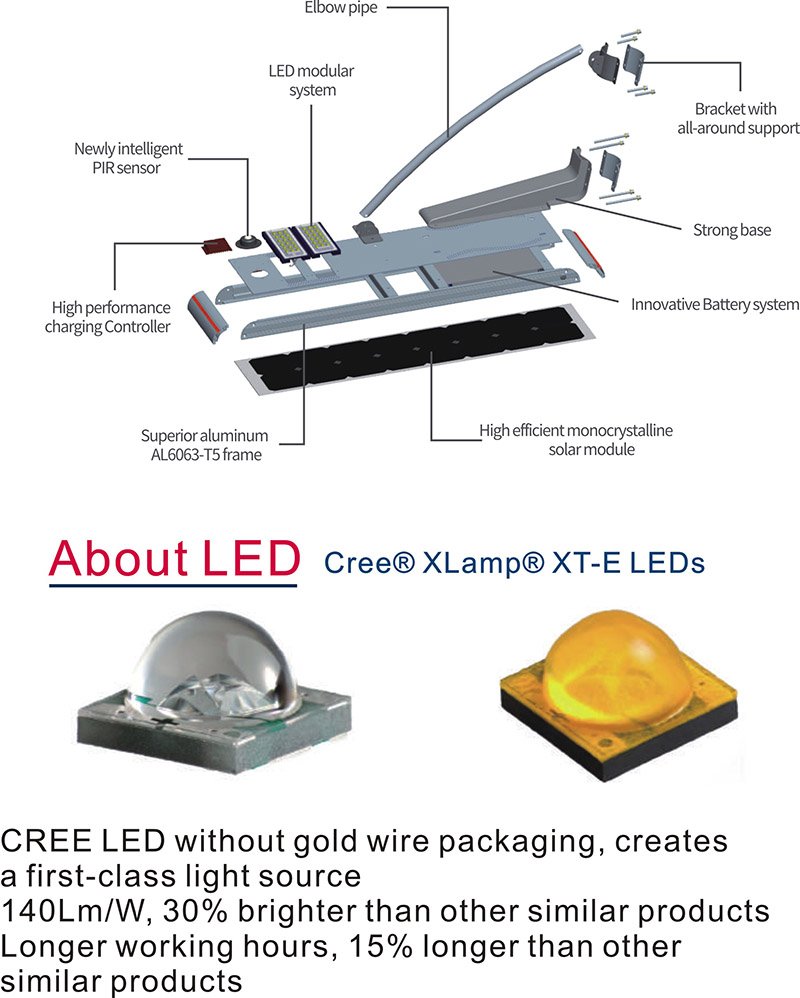

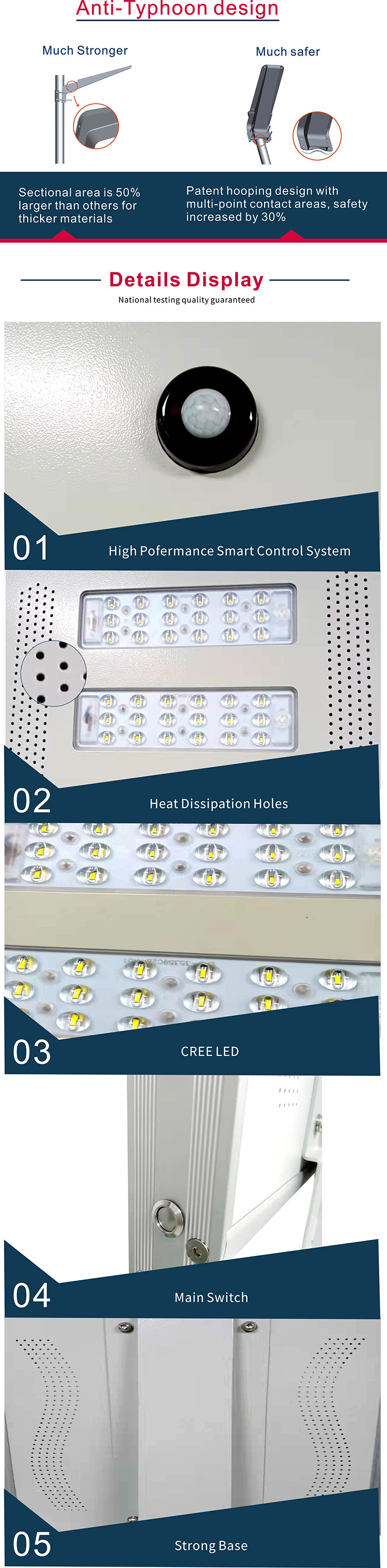

Cree® XLamp® XT-E LEDs

CREE LED without gold wire packaging, creates a first-class light source

140Lm/W, 30% brighter than other similar products

Longer working hours, 15% longer than other

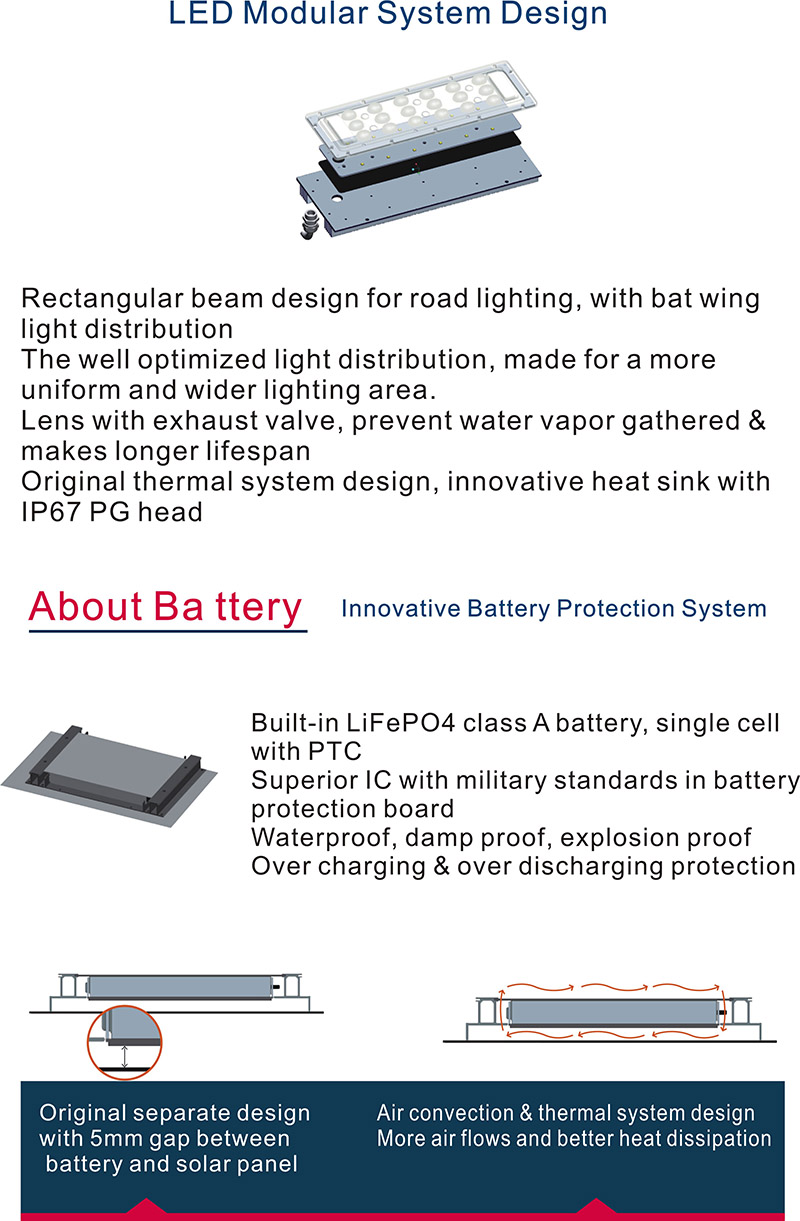

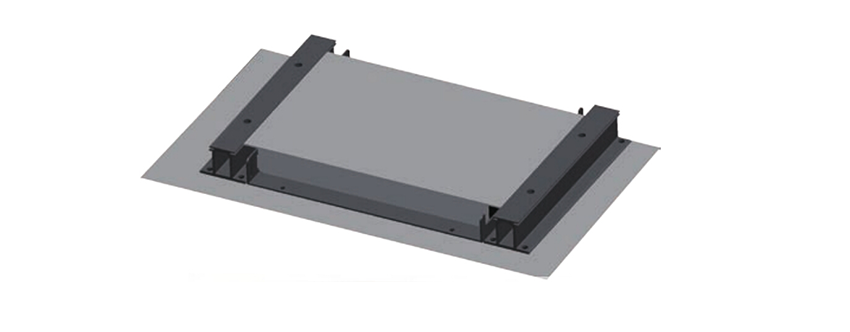

Innovative Battery Protection System

Built-in LiFePO4 class A battery, single cell with PTC Over charging & over discharging protection

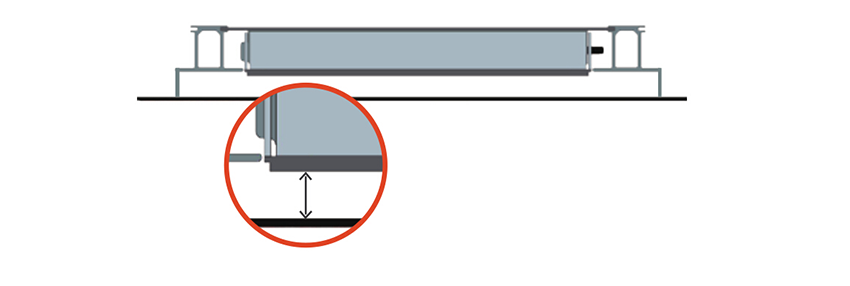

Original separate design with 5mm gap between battery and solar panel

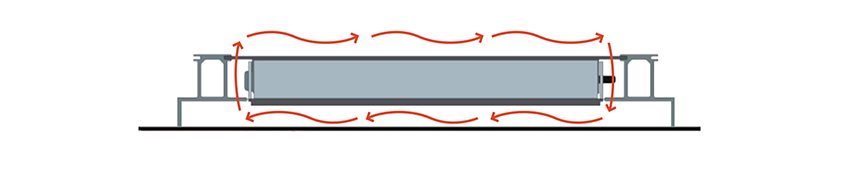

Air convection & thermal system design, More air flows and better heat dissipation

solar street light price solar street light High Quality Battery 40Watt Full led solar street
