8W Solar power packing Lamp with Led source
2023 Selling the best quality cost effective products ip65 led 8w all in one led solar street light 2023 Selling the best quality cost effective products ip65 led 8w all in one led solar street light 2023 Selling the best quality cost effective products ip65 led 8w all in one led solar street light 2023 Selling the best quality cost effective products ip65 led 8w all in one led solar street light 2023 Selling the best quality cost effective products ip65 led 8w all in one led solar street light 2023 Selling the best quality cost effective products ip65 led 8w all in one led solar street light
2023 Selling the best quality cost effective products ip65 led 8w all in one led solar street light

  • Model No. :

    LRC08W

  • LED brand :

    LEADRAY

  • LED Power :

    8W

  • Solar Panel Power :

    18V 15W

  • Battery Type :

    Lithium LiFePO4 battery

  • Infrared senor :

    Available

  • Color :

    Silver

  • Port Of Dispatch :

    Qingdao

  • Payment :

    T/T, Paypal, Western Union

  • Original Region :

    China

  • Lead Time :

    3~5 days for samples;15~20 days for bulk
Contact Us
description

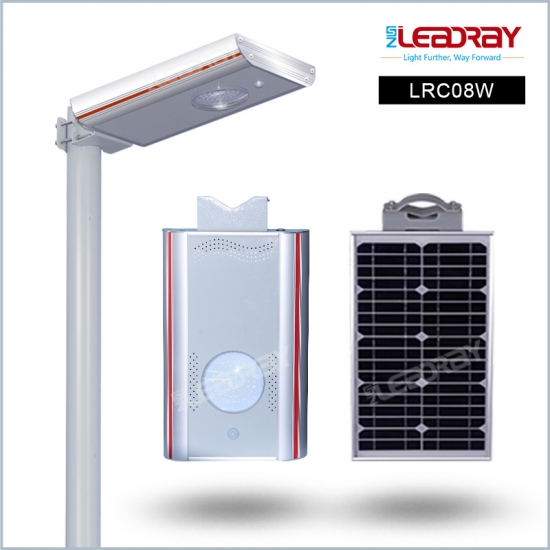

8W Led Source Solar power Led street Lighting All in one Smart for highway high power led lamp Waterproof Outdoor.

8W Led Source Solar power Led street Lighting All in one : Integrated Design/Free Maintenance/Easy Installation/Environmental Friendly

Model No: LRC08W
Solar Panel Power: 18V 18W(High efficiency monocrystalline silicon)
Battery Type: High efficiency LiFePO4 Battery
LED Brand: CREE
LED Power: 12V 8W
Luminous Flux: 960Lm(TYP)
Lifespan: 50,000hrs
Beam Angel: 150x70°
Charging Time: 6-8 hours
Lighting Time(Full Power): 12-14hours
Lighting Time(30% saving mode): 39 hours (3~5 rainy days)
Color temperature: 2700~6500K
Discharging temperature: -20 ℃ to +60 ℃
Charging Temperature: 0 ℃ to +60 ℃
Storage temperature: -20 ℃ to +45 ℃
Mounting Height: 4-6m
Suggested Distance Between Lights: 10-15m
Material: Superior aviation aluminum AL6063-T5

Warranty: 5 years

Model No. LRC08W LRC12W
Physical Parameters
LED Brand EVERLIGHT EVERLIGHT
LEDQty 60 60
Power of PV Module (W) 15W 18W
LIFEPO4 Battery Capacity (Ah) 6 9
PIR Sensor YES   YES
Dimension of Product (mm) 515*280*56 515*280*56
Net Weight (kg) 4.9 5.7

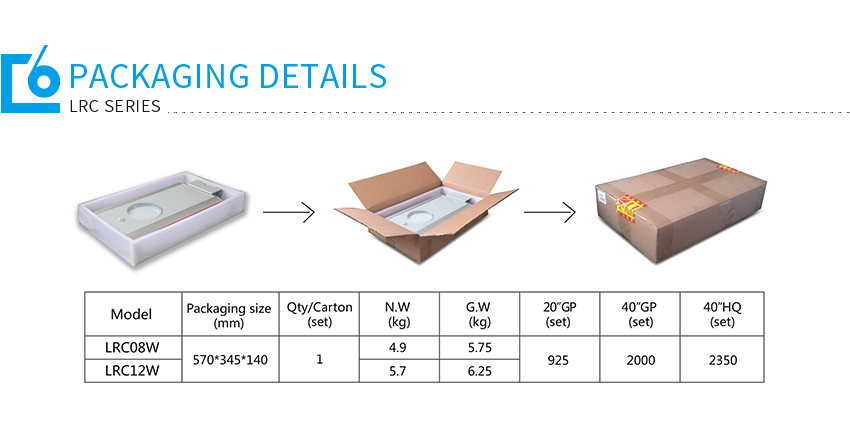

Dimension of Carton (mm) 570*345*140 570*345*140
Gross Weight (kg) 5.75 6.25
Light Parameters
Light Output (W) 8W 12W
Typical Luminous Flux (Lm) 960 1440
Color Temperature (K) 2700-6500 2700-6500
Beam Angle (°) 120° 120°
Min. Working Time (Hours) Full Bright 13 13
Dim Mode 39 39
Environment Parameters
Charging Temperature (°C) 0 °C to +60 °C
Discharing temperature (°C) -20 °C to +60 °C
Storage temperature (°C) -20 °C to +45 °C
Installation
Recommended Dia. of Top Pole (mm) 60~90 60~90
Recommended Installation Height (m) 3~4 3~4
Recommended Installation Distance (m) 8~10 8~10

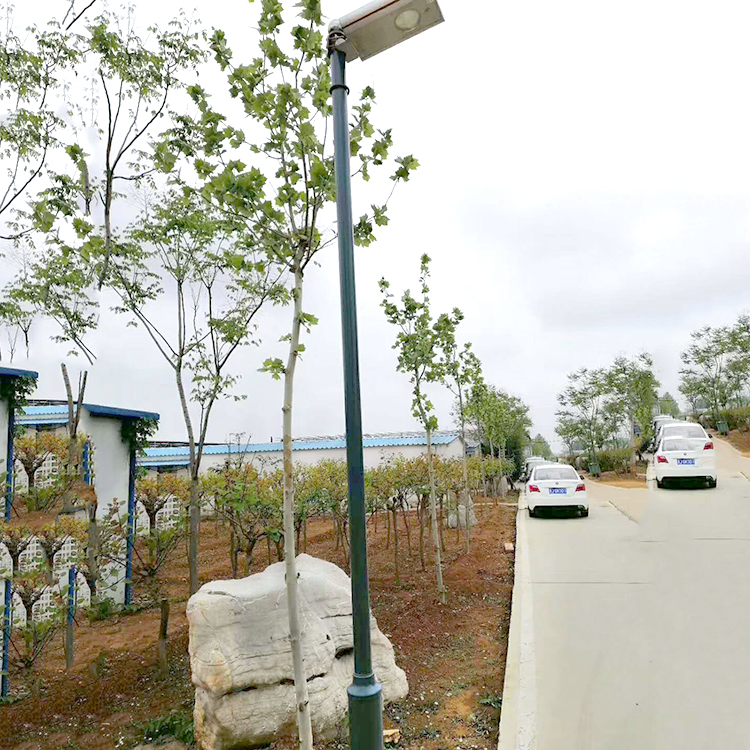

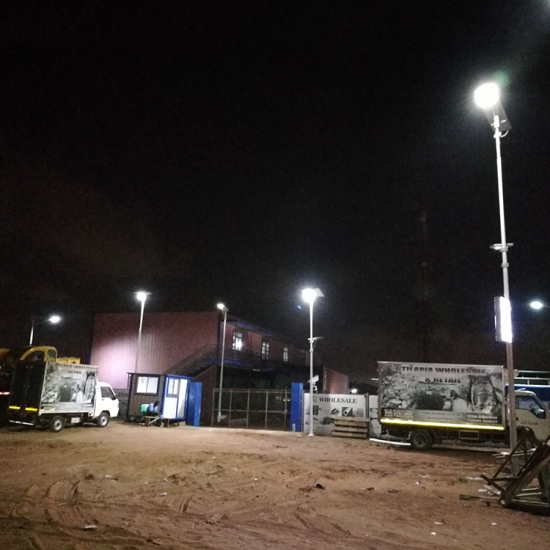

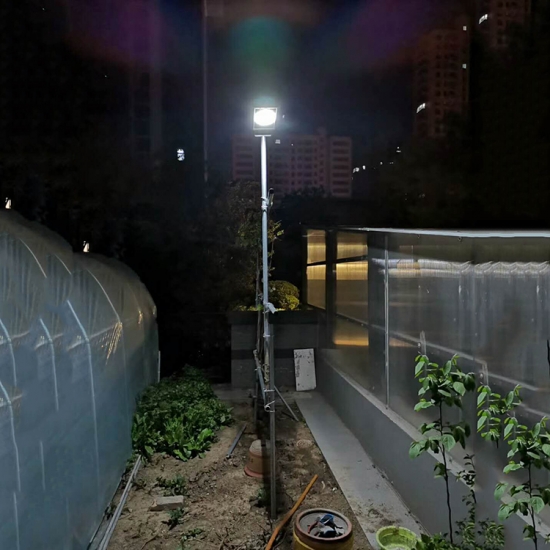

Smart for highway high power led lamp Waterproof Outdoor


Smart for highway high power led lamp Waterproof Outdoor



Smart for highway high power led lamp Waterproof Outdoor

Smart for highway high power led lamp Waterproof Outdoor

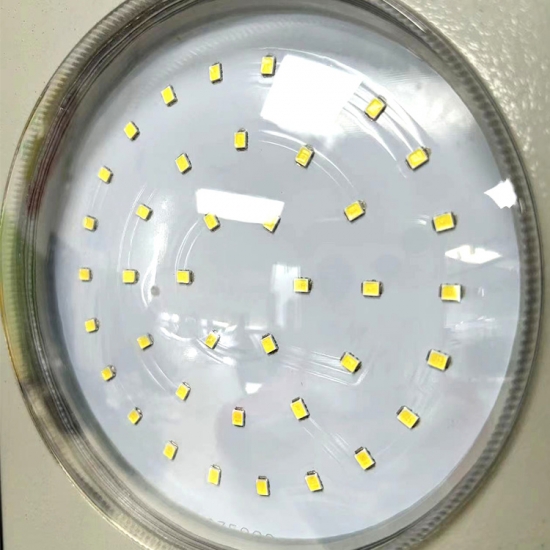

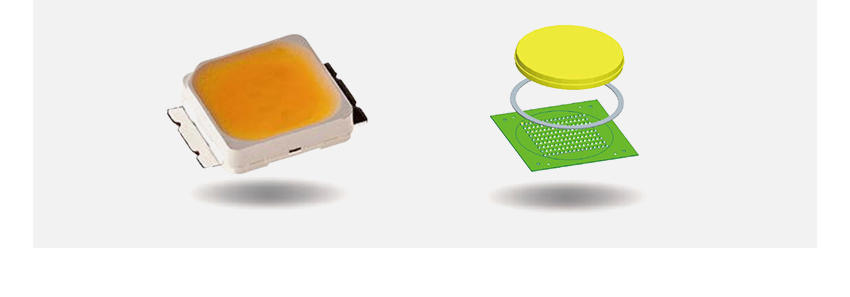

Everlight LED

67-22S package with high efficacy, high CRI, low power consumption, wide viewing angle

120Lm/W, 30% brighter than other similar products

Longer working hours, 15% longer than other similar products

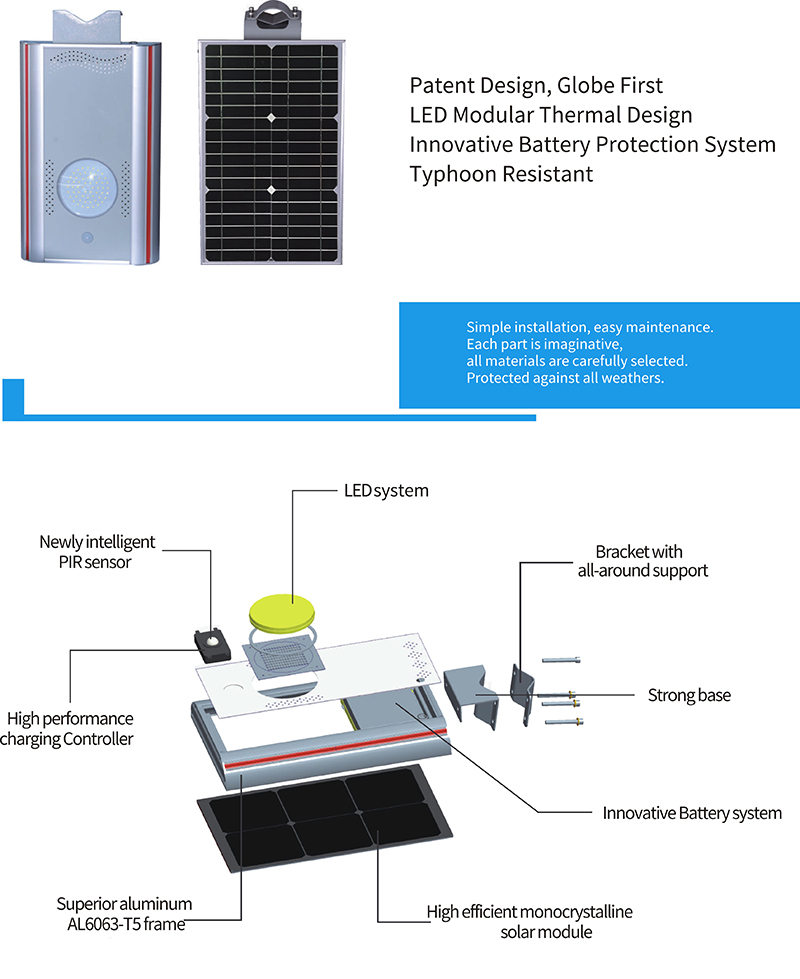

Innovative Battery Protection System

Built-in LiFePO4 class A battery, single cell with PTC Over charging & over discharging protection

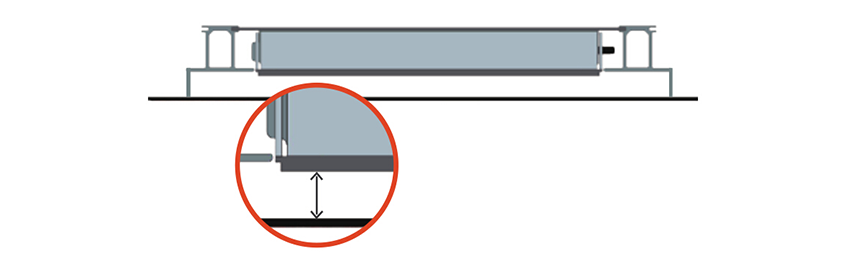

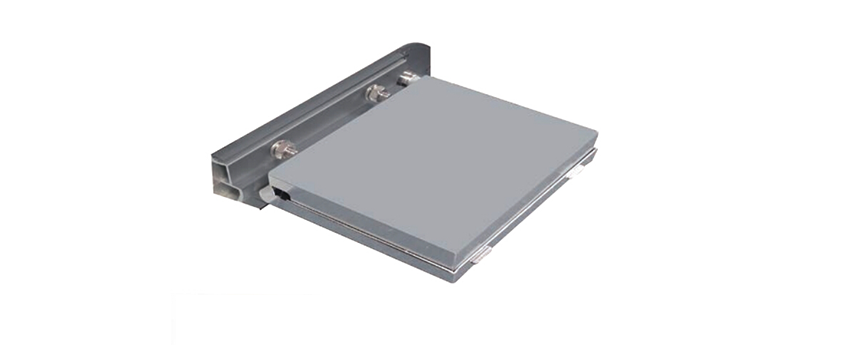

Original separate design with 5mm gap between battery and solar panel




Air convection & thermal system design, More air flows and better heat dissipation
