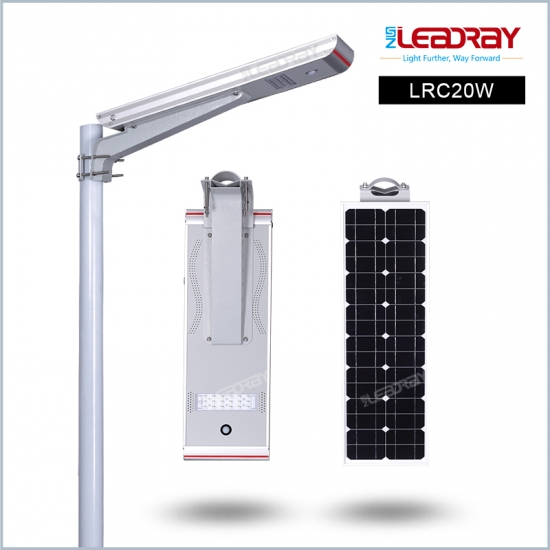

20W Solar All In One Street Light
20W Solar All In One Street Light with Pole High Brightness Outdoor Ip65 Waterproof Solar Street Light 20W Solar All In One Street Light with Pole High Brightness Outdoor Ip65 Waterproof Solar Street Light 20W Solar All In One Street Light with Pole High Brightness Outdoor Ip65 Waterproof Solar Street Light 20W Solar All In One Street Light with Pole High Brightness Outdoor Ip65 Waterproof Solar Street Light 20W Solar All In One Street Light with Pole High Brightness Outdoor Ip65 Waterproof Solar Street Light 20W Solar All In One Street Light with Pole High Brightness Outdoor Ip65 Waterproof Solar Street Light
20W Solar All In One Street Light with Pole High Brightness Outdoor Ip65 Waterproof Solar Street Light

  • Model No. :

    LRC20W

  • LED brand :

    LEADRAY

  • LED Power :

    20W

  • Solar Panel Power :

    18V 40W

  • Battery Type :

    Lithium LiFePO4 battery

  • Infrared senor :

    Available

  • Color :

    Silver

  • Port Of Dispatch :

    Qingdao

  • Payment :

    T/T, Paypal, Western Union

  • Original Region :

    China

  • Lead Time :

    3~5 days for samples;15~20 days for bulk
Contact Us
description

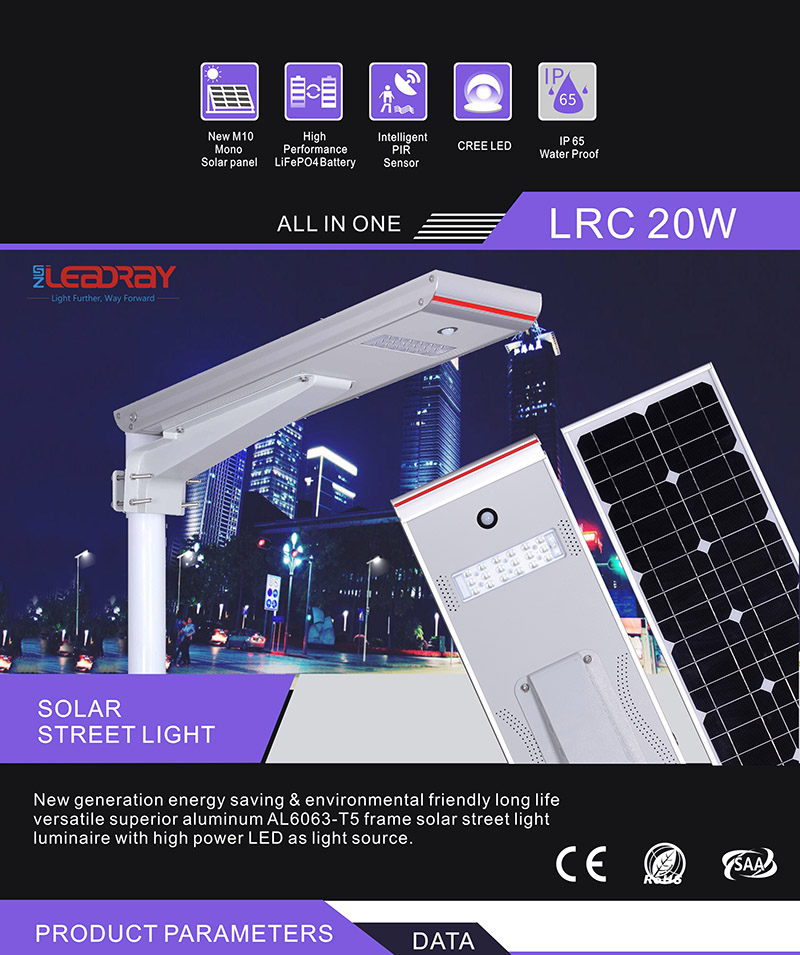

20W Solar All In One Street Light

20W Solar All In One Street Light: Integrated Design/Free Maintenance/Easy Installation/Environmental Friendly.

Solar LED Street Light with PIR Motion Sensor High Brightness Outdoor Ip65

All In One Street Light
Model No: LRC20W
Solar Panel Power: 18V 40W (High efficiency monocrystalline silicon)
Battery Type: High efficiency LiFePO4 Battery
LED Brand: CREE
LED Power: 20W
Luminous Flux: 2800Lm(TYP)
Lifespan: 50,000hrs
Beam Angel: 150x70°
Charging Time: 6-8 hours
Lighting Time(Full Power): 12-14hours
Lighting Time(30% saving mode): 39 hours (3~5 rainy days)
Color temperature: 2700~6500K
Discharging temperature: -20 ℃ to +60 ℃
Charging Temperature: 0 ℃ to +60 ℃
Storage temperature: -20 ℃ to +45 ℃
Mounting Height: 4-6m
Suggested Distance Between Lights: 18-20m
Material: Superior aviation aluminum AL6063-T5

Warranty: 3-5 years

Model No. LRC20W
Physical Parameters
LED Brand CREE
LED Qty 18
Power of PV Module (W) 40W
LIFEPO4 Battery Capacity (Ah) 18
PIR Sensor YES

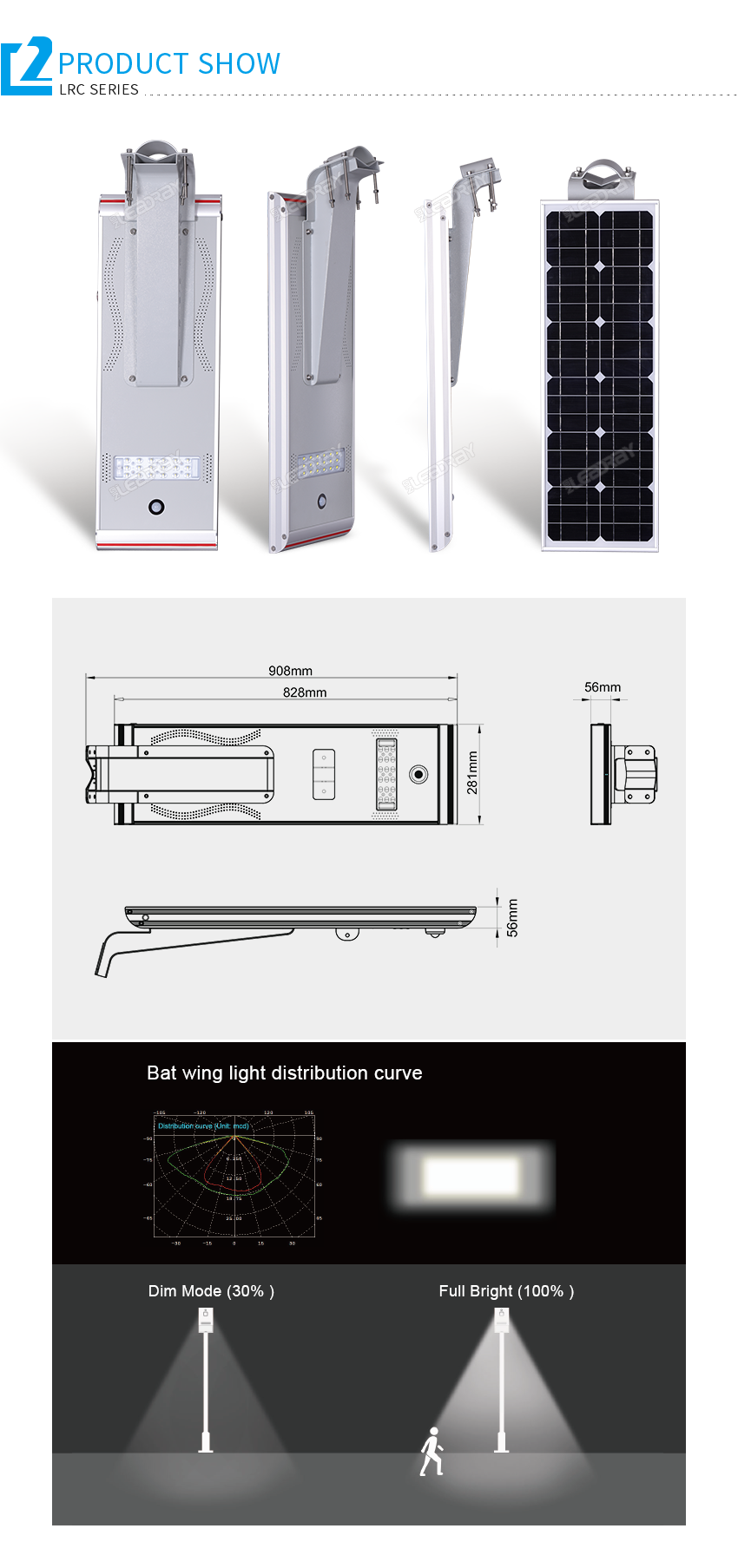

Dimension of Product (mm) 908*281*56
Net Weight (kg) 13

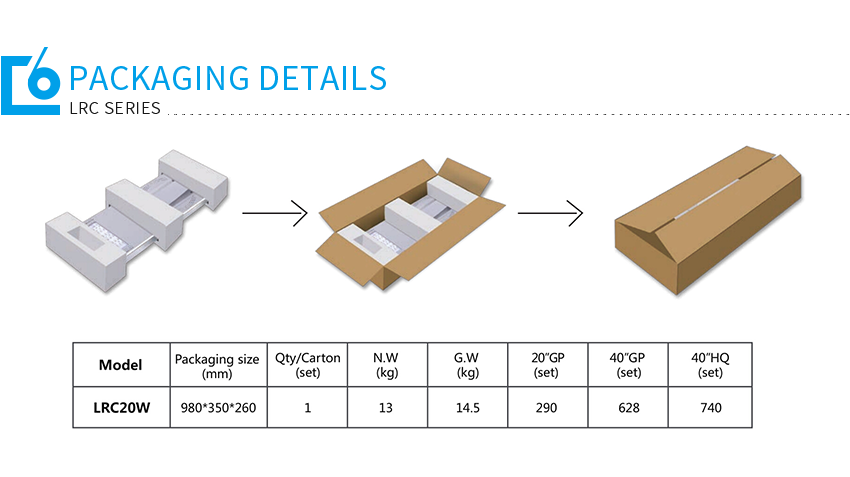

Dimension of Carton (mm) 980*350*260
Gross Weight (kg) 14.5
Light Parameters
Light Output (W) 20W
Typical Luminous Flux (Lm) 2800
Color Temperature (K) 2700-6500
Beam Angle (°) 150°x70°
Min. Working Time  (Hours) Full Bright 13
Dim Mode 39
Environment Parameters
Charging Temperature (°C) 0 °C to +60 °C
Discharing temperature (°C) -20 °C to +60 °C
Storage temperature (°C) -20 °C to +45 °C

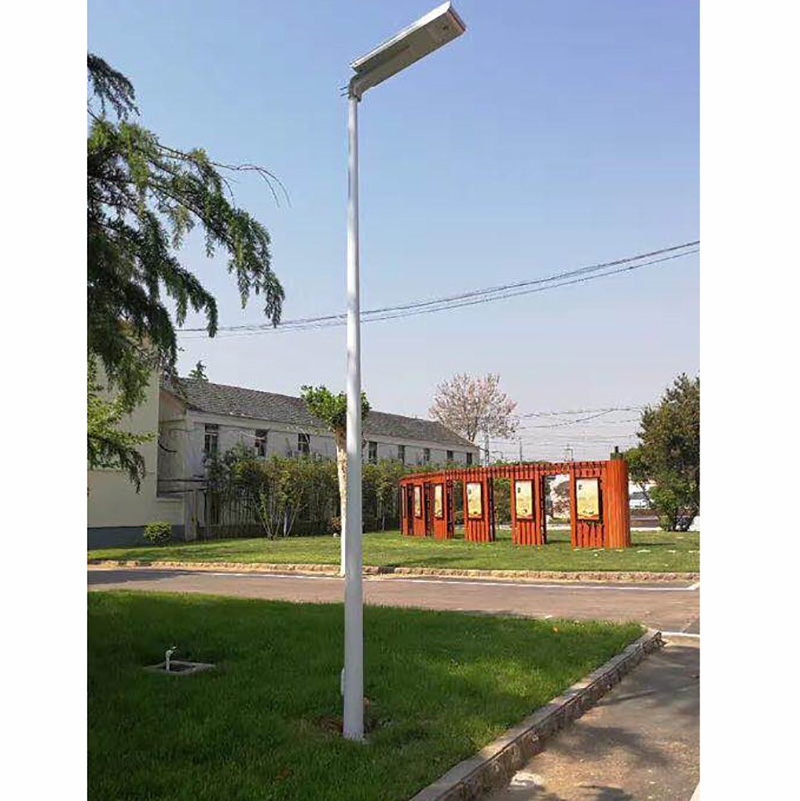

Installation
Recommended Dia. of Top Pole (mm) 60~105
Recommended Installation Height (m) 4~6
Recommended Installation Distance (m) 18~20

Solar LED Street Light with PIR Motion Sensor High Brightness Outdoor Ip65


Solar LED Street Light with PIR Motion Sensor High Brightness Outdoor Ip65

Solar LED Street Light with PIR Motion Sensor High Brightness Outdoor Ip65

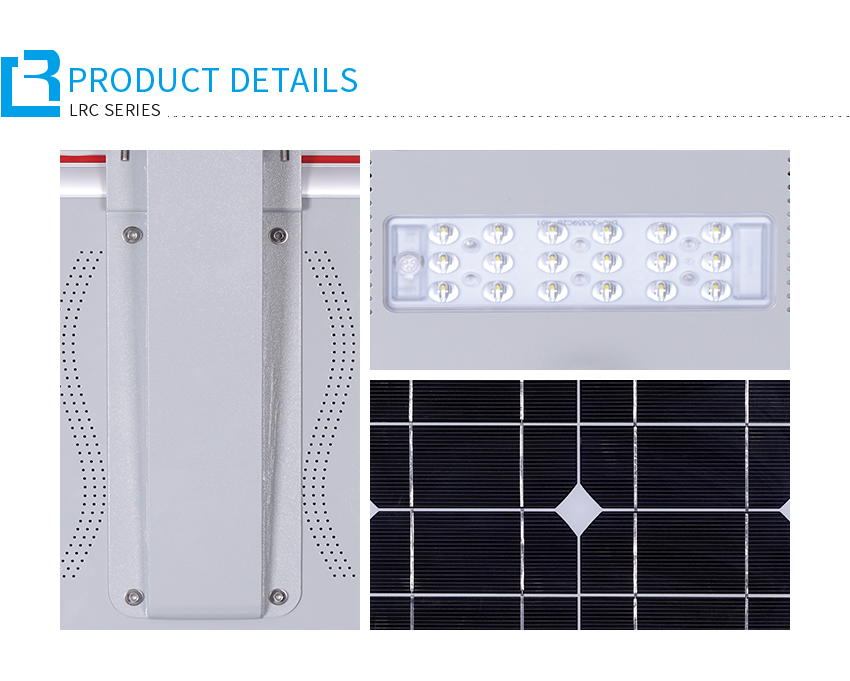

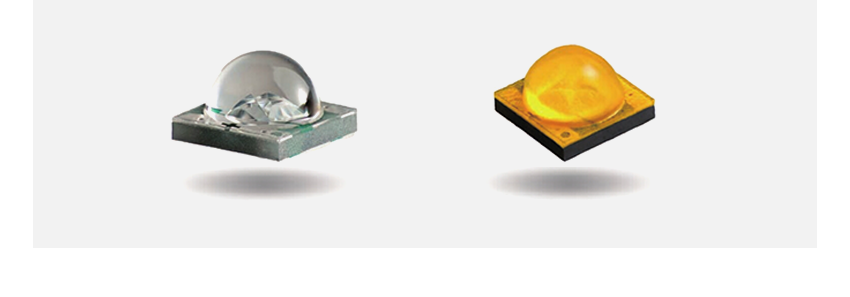

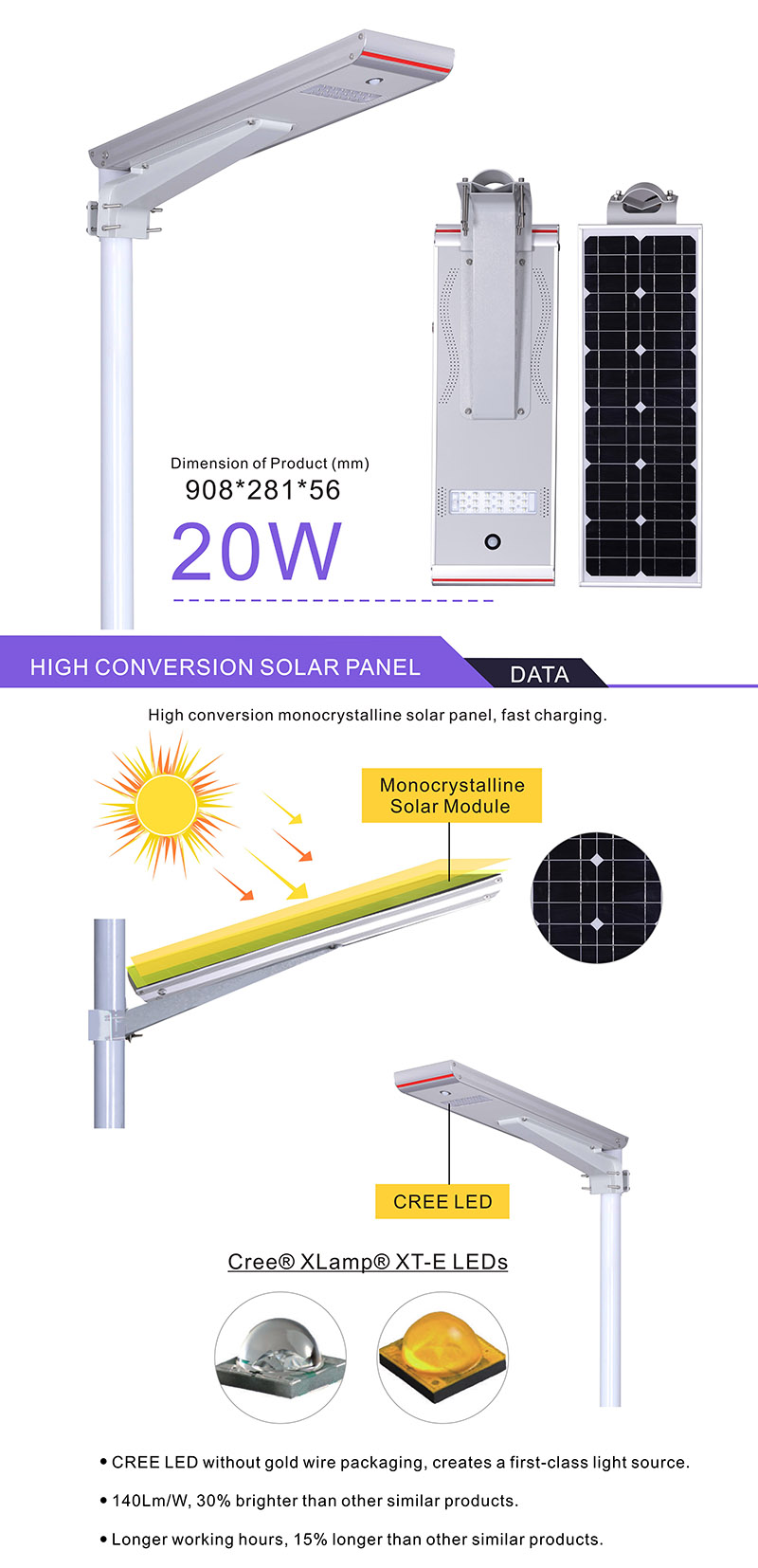

Cree® XLamp® XT-E LEDs

CREE LED without gold wire packaging, creates a first-class light source

140Lm/W, 30% brighter than other similar products

Longer working hours, 15% longer than other

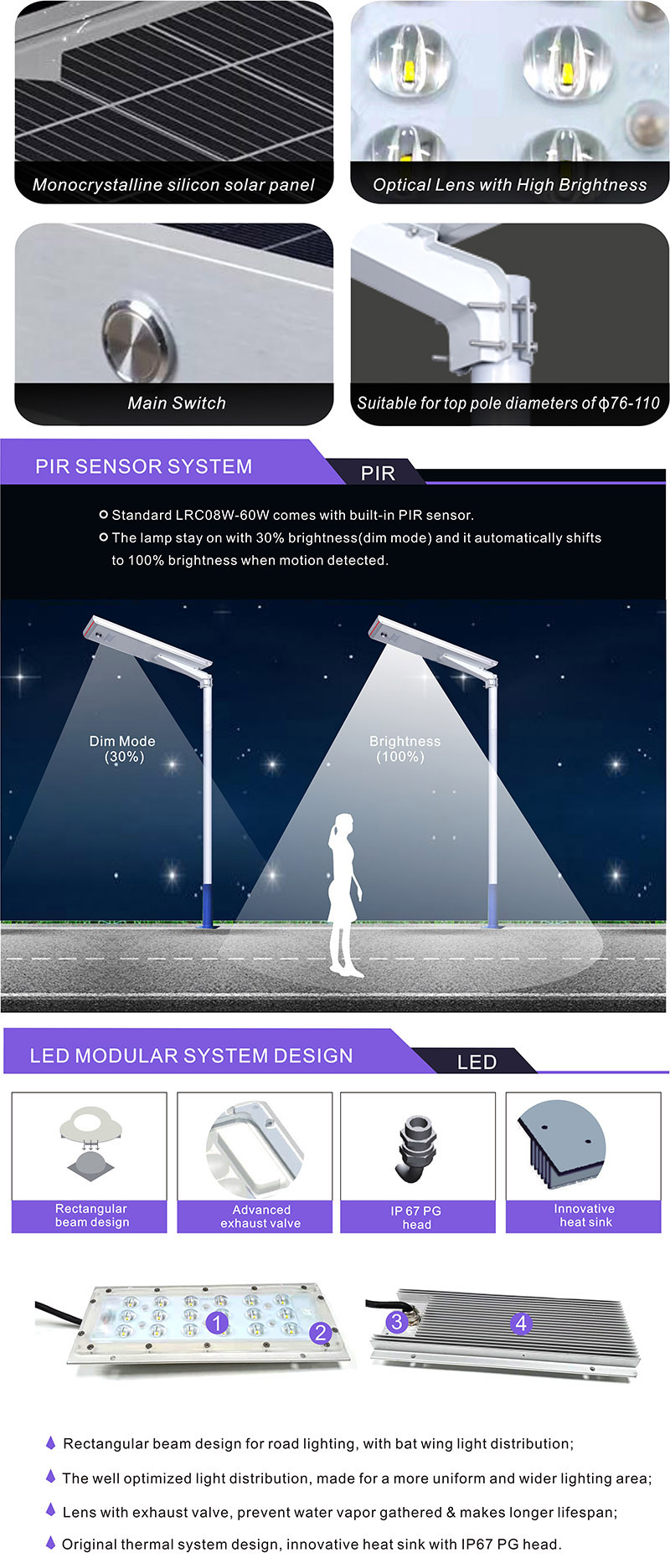

Innovative Battery Protection System

Built-in LiFePO4 class A battery, single cell with PTC Over charging & over discharging protection

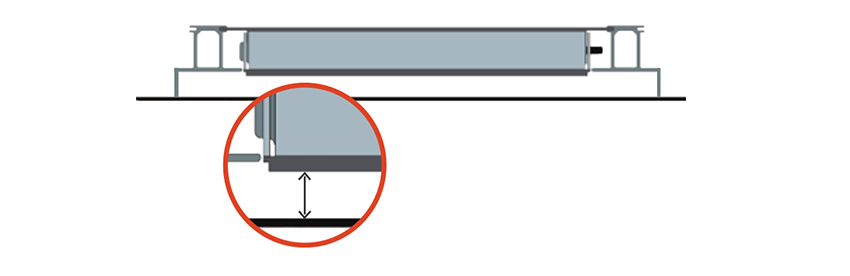

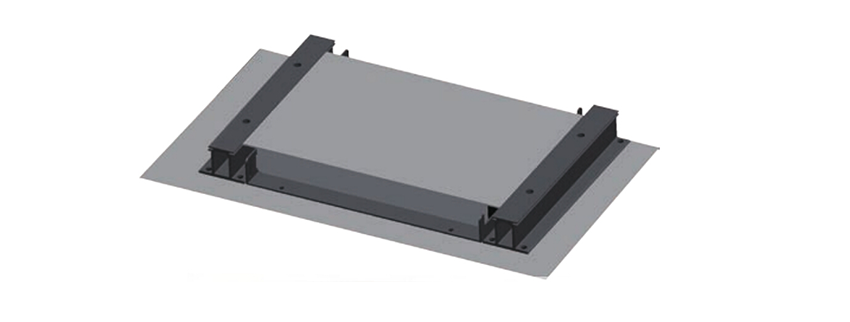

Original separate design with 5mm gap between battery and solar panel

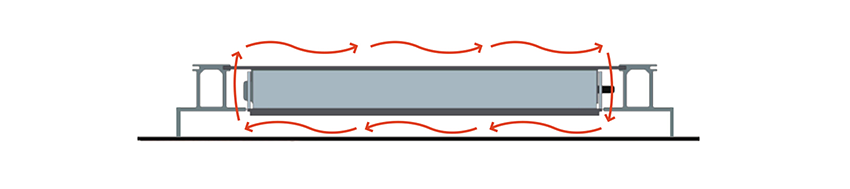

Air convection & thermal system design, More air flows and better heat dissipation

Solar LED Street Light with PIR Motion Sensor High Brightness Outdoor Ip65
