25W Solar Power Led Street Lighting
25W Outdoor Integrated Solar Street Light Motion Sensor for Roadway High Brightness Outdoor Ip65 Waterproof 25W Outdoor Integrated Solar Street Light Motion Sensor for Roadway High Brightness Outdoor Ip65 Waterproof 25W Outdoor Integrated Solar Street Light Motion Sensor for Roadway High Brightness Outdoor Ip65 Waterproof 25W Outdoor Integrated Solar Street Light Motion Sensor for Roadway High Brightness Outdoor Ip65 Waterproof 25W Outdoor Integrated Solar Street Light Motion Sensor for Roadway High Brightness Outdoor Ip65 Waterproof 25W Outdoor Integrated Solar Street Light Motion Sensor for Roadway High Brightness Outdoor Ip65 Waterproof

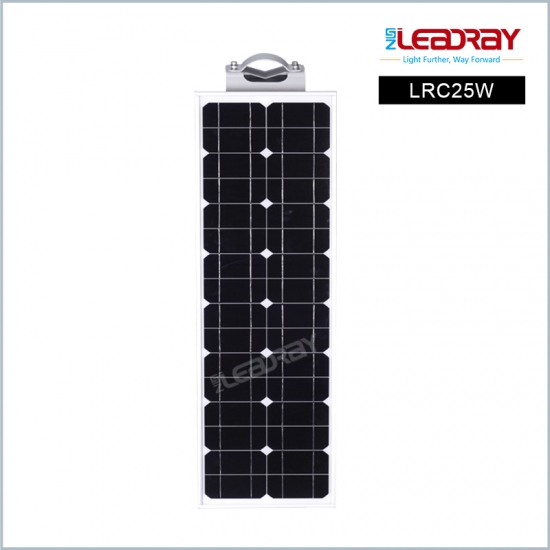

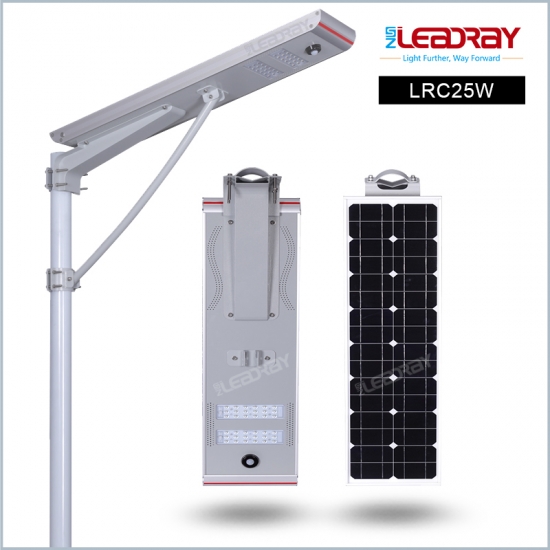

25W Outdoor Integrated Solar Street Light Motion Sensor for Roadway High Brightness Outdoor Ip65 Waterproof

  • Model No. :

    LRC25W

  • LED brand :

    LEADRAY

  • LED Power :

    25W

  • Solar Panel Power :

    18V 50W

  • Battery Type :

    Lithium LiFePO4 battery

  • Infrared senor :

    Available

  • Color :

    Silver

  • Port Of Dispatch :

    Qingdao

  • Payment :

    T/T, Paypal, Western Union

  • Original Region :

    China

  • Lead Time :

    3~5 days for samples;15~20 days for bulk
Contact Us
description

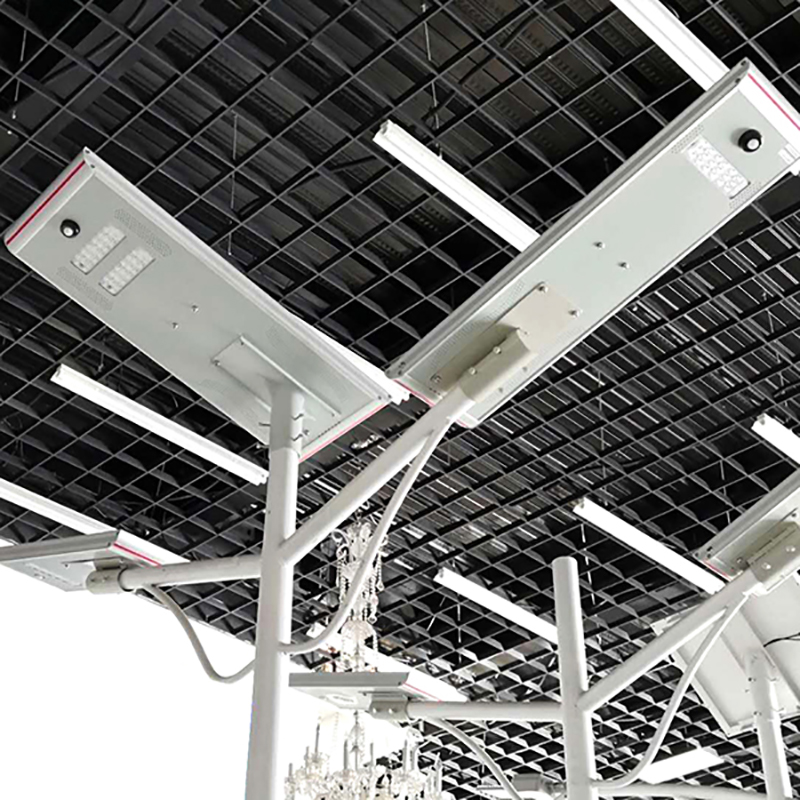

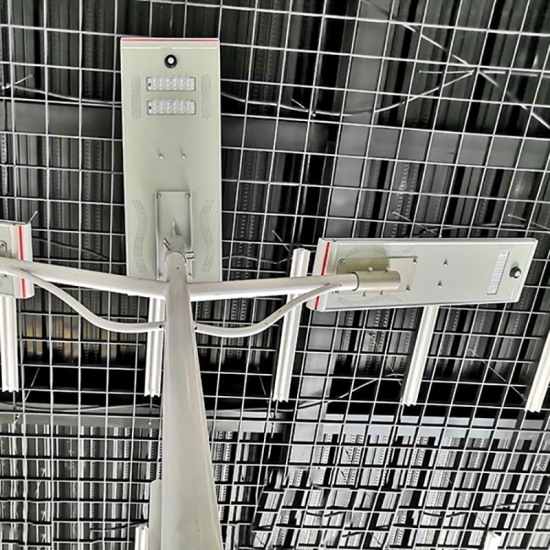

25W Motion Sensor Integrated Solar Street Light fiam light in led light

25W Motion Sensor Integrated Solar Street Light: Integrated Design/Free Maintenance/Easy Installation/Environmental Friendly.


fiam light in led light
Model No: LRC25W
Solar Panel Power: 18V 50W (High efficiency monocrystalline silicon)
Battery Type: High efficiency LiFePO4 Battery
LED Brand: CREE
LED Power: 25W
Luminous Flux: 3500Lm(TYP)
Lifespan: 50,000hrs
Beam Angel: 150x70°
Charging Time: 6-8 hours
Lighting Time(Full Power): 12-14hours
Lighting Time(30% saving mode): 39 hours (3~5 rainy days)
Color temperature: 2700~6500K
Discharging temperature: -20 ℃ to +60 ℃
Charging Temperature: 0 ℃ to +60 ℃
Storage temperature: -20 ℃ to +45 ℃
Mounting Height: 5-7m
Suggested Distance Between Lights: 18-20m
Material: Superior aviation aluminum AL6063-T5
Warranty: 3-5 years

Model No. LRC25W LRC30W LRC40W
Physical Parameters
LED Brand CREE CREE CREE
LED Qty 36 36 36
Power of PV Module (W) 50W 60W 60W
LIFEPO4 Battery Capacity (Ah) 21 25 27
PIR Sensor YES YES YES

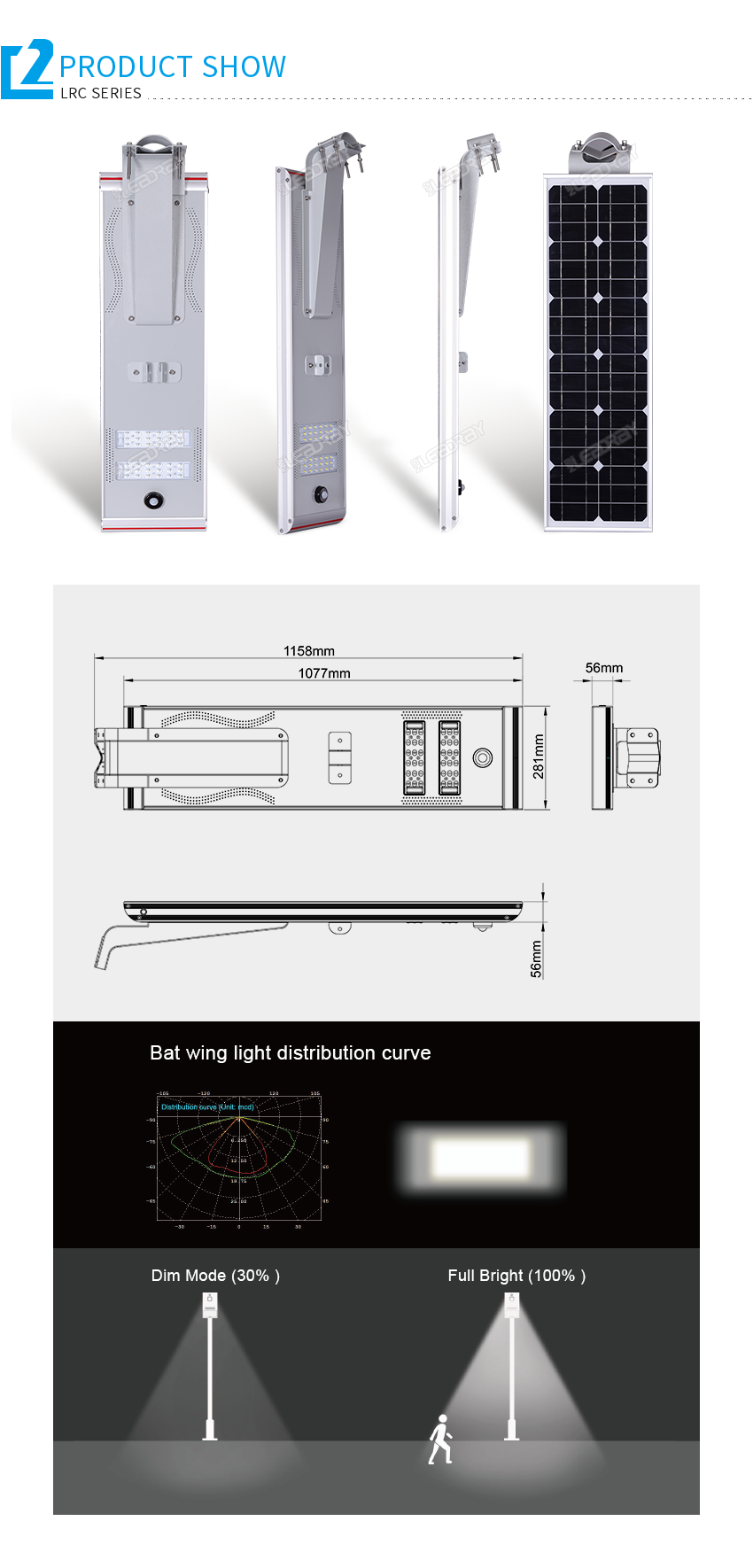

Dimension of Product (mm) 1158*281*56 1158*281*56 1158*281*56
Net Weight (kg) 16.5 17 17.5

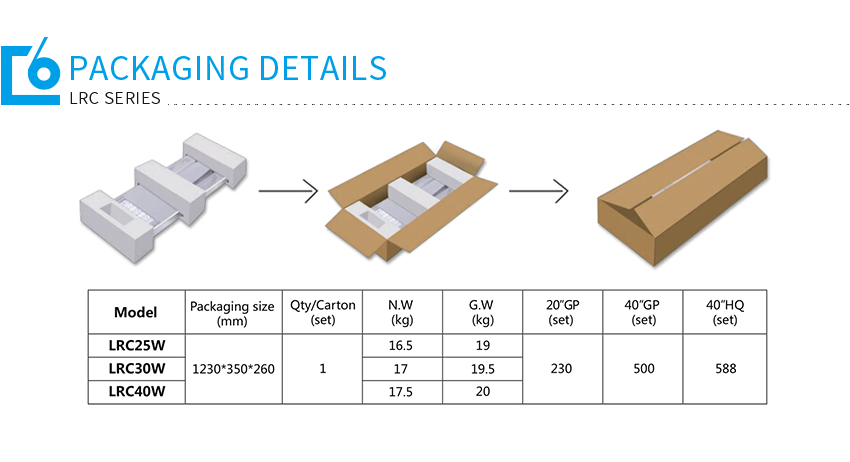

Dimension of Carton (mm) 1230*350*260 1230*350*260 1230*350*260
Gross Weight (kg) 19 19.5 20
Light Parameters
Light Output (W) 25W 30W 40W
Typical Luminous Flux (Lm) 3500 4200 5600
Color Temperature (K) 2T00-6500 2700-6500 2700-6500
Beam Angle (°) 150°x70° 150°x70° 150°x70°
Min. Working Time (Hours) Full Bright 13 13 13
Dim Mode 39 39 39
Environment Parameters
Charging Temperature (°C) 0 °C to +60 °C
Discharing temperature (°C) -20 °C to +60 °C
Storage temperature (°C) -20 °C to +45 °C
Installation
Recommended Dia. of
Top Pole (mm)
76~105 76~105 76~105
Recommended Installation
Height (m)
 		5~7 5~7 5~7
Recommended Installation
Distance (m)
 		18~20 20~25 20~25

fiam light in led light

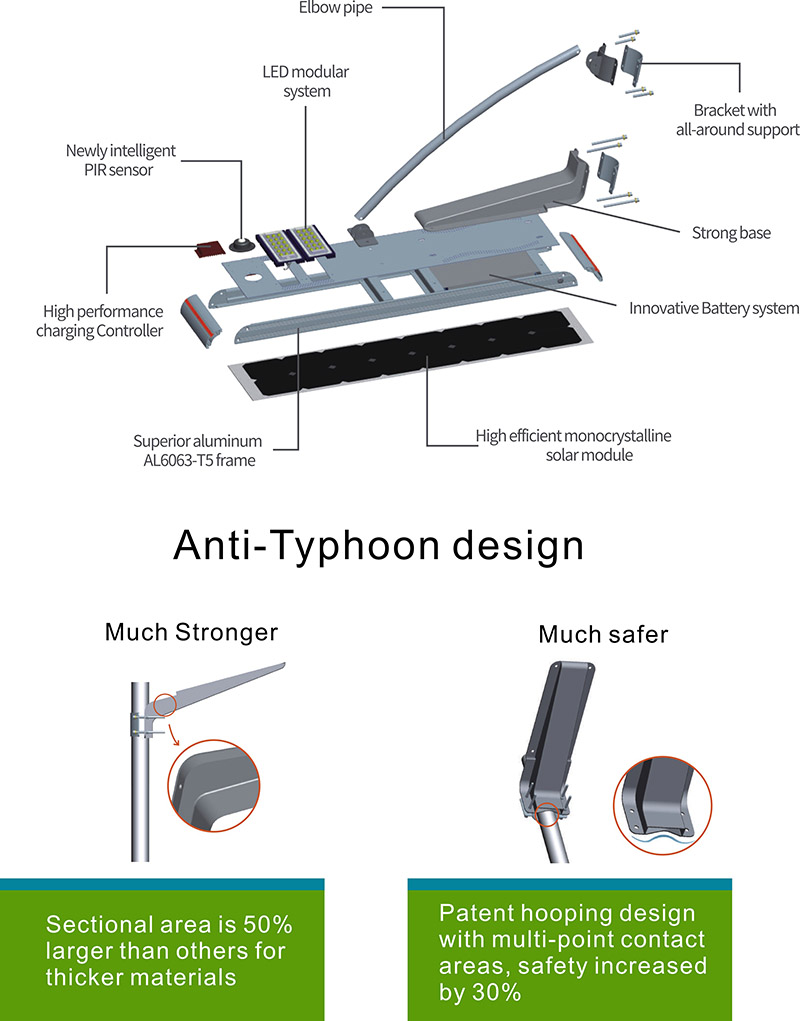

Integrated Solar Street Light

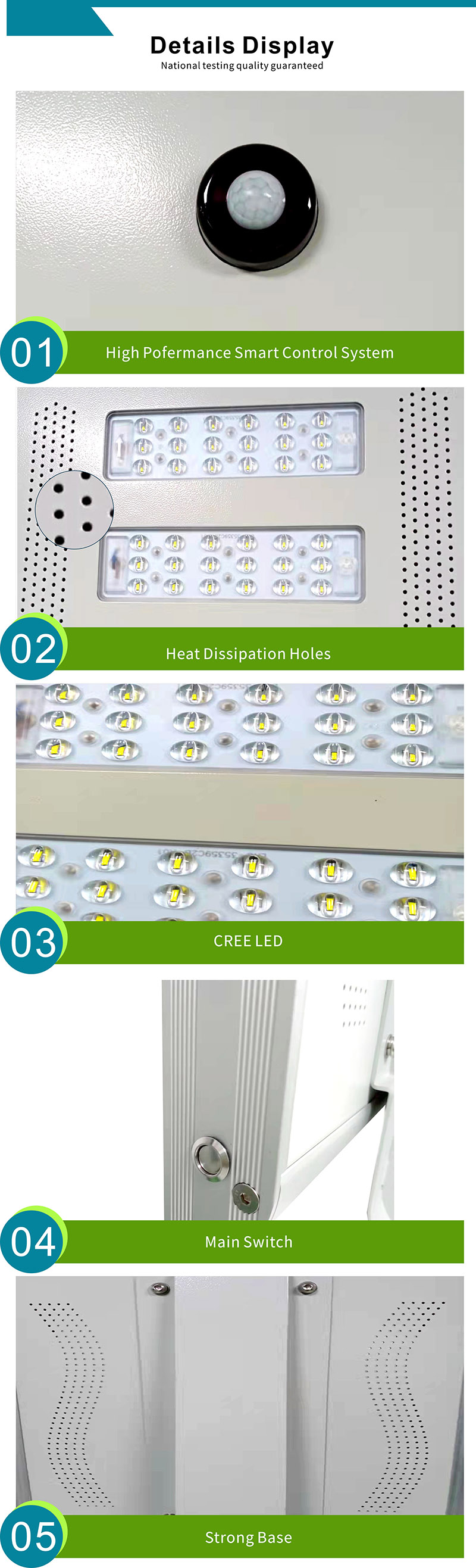

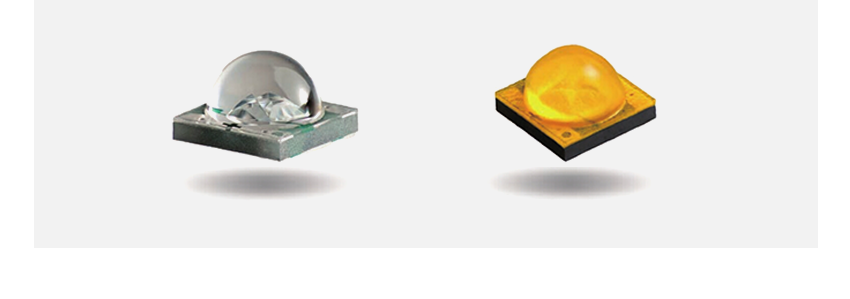

Cree® XLamp® XT-E LEDs

CREE LED without gold wire packaging, creates a first-class light source

140Lm/W, 30% brighter than other similar products

Longer working hours, 15% longer than other

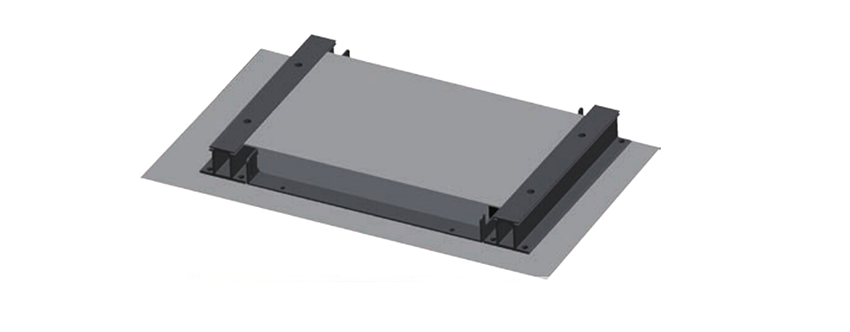

Innovative Battery Protection System

Built-in LiFePO4 class A battery, single cell with PTC Over charging & over discharging protection

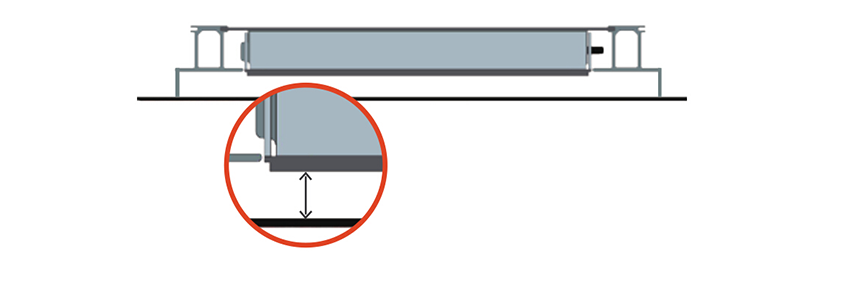

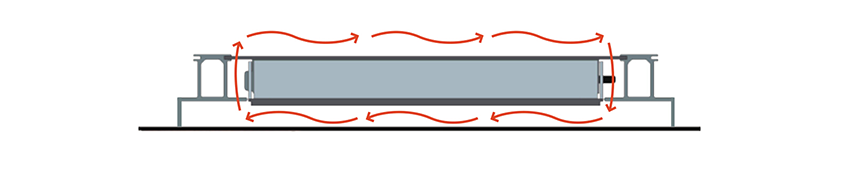

Original separate design with 5mm gap between battery and solar panel






Air convection & thermal system design, More air flows and better heat dissipation
