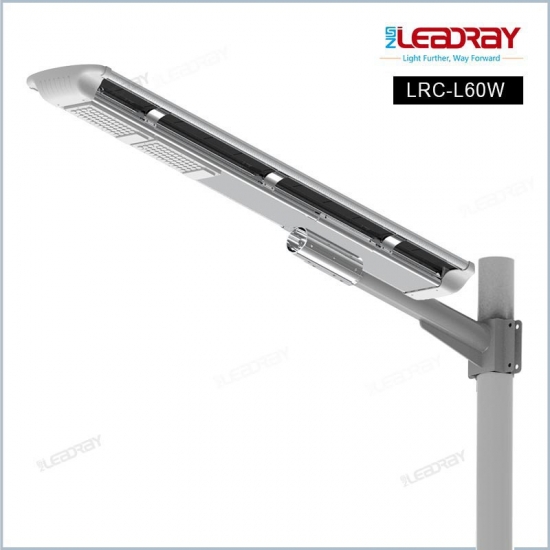

Model No. :
LRC-L60WLED brand :
LEADRAYLED Power :
60WSolar Panel Power :
60WBattery Type :
Ternary lithium battery 62000mah
- Durable and Water-Resistant Design: This 60W all-in-one solar street light is built and features an IP65 rating, ensuring it withstands harsh outdoor conditions and is suitable for use in various applications such as highways, parking lots, courtyards, and roads.
- High Efficiency and Long Lifespan: With a lifespan of 50,000 hours and a high luminous efficiency of 180 lm/W, this solar street light provides reliable and energy-efficient illumination for extended periods.
- Multi-Functional Control Options: This product offers flexible control modes, including light control, remote control, and motion sensor, allowing users to customize their lighting experience according to their needs.
1.Two colors, adjustable mold design
2. Adopt high brightness ED chip
3. Large capacity deep cycle lithium battery, longer service life
4.High quality solar cells, small size, high efficiency.
5. Night sensor + PIR motion sensor + remote control, support 3-4 nights after full charge
6. Easy installation, square light distribution design, 70*140 lighting Angle.
7. Micro current switch, safer
|
LEADRAY All In One Integrated Solar Powered Street Light
|
|||||
|
Power
|
20W
|
30W
|
40W
|
60W
|
80W
|
|
Single crystal solar panels
|
6V/20W
|
6V/30W
|
6V/40W
|
6V/60W
|
6V/80W
|
|
Solar panel size
|
586*260*68mm
|
796*260*68mm
|
1016*260*68mm
|
1426*260*68mm
|
1736*260*68mm
|
|
Battery
|
Lithium iron phosphate
3.2V 20AH
|
Lithium iron phosphate
3.2V 30AH
|
Lithium iron phosphate
3.2V 40AH
|
Lithium iron phosphate
3.2V 60AH
|
Lithium iron phosphate
3.2V 90AH
|
|

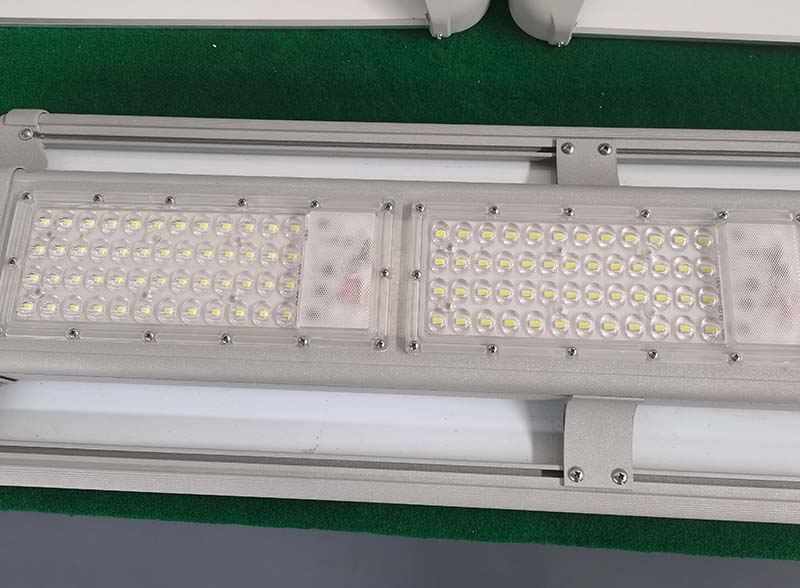

LED
|
Philips3030，48PCS
|
Philips3030，48PCS
|
Philips3030，48PCS
|
Philips3030，96PCS
|
Philips3030，144PCS
|
|
Product size（mm)
|
640*300*130
|
850*300*130
|
1060*300*130
|
1480*300*130
|
1790*300*130
|
|
Light efficiency
|
180LM/W
|
180LM/W
|
180LM/W
|
180LM/W
|
180LM/W
|
|
Controller
|
MPPT、PWM selectable
|
||||
|
Lighting mode
|
Infrared sensing+segmented time control + intelligent control
|
||||
|
Recommended
installation height
|
3-5 meter
|
4-6 meter
|
5-7 meter
|
6-8 meter
|
7-9 meter
|
|
Application
|
Highway, parking lot, courtyard, road, outdoor, etc.
|
|||||
High conversion Rate
Monocrystalline silicon solar panels6h fully charging, lighting about 12h
LiFePO4 Battery
High-capacity lithium iron phosphate battery, good charging anddischarging performance, long battery life and lasting lighting time
|
Production Process
|
Raw material test → Cutting →Molding or bending →Welding (longitudinal )→Dimension verify →Flange welding →Hole drilling
→Calibration → Galvanization or powder coating ,painting →Recalibration →Thread →Packages |

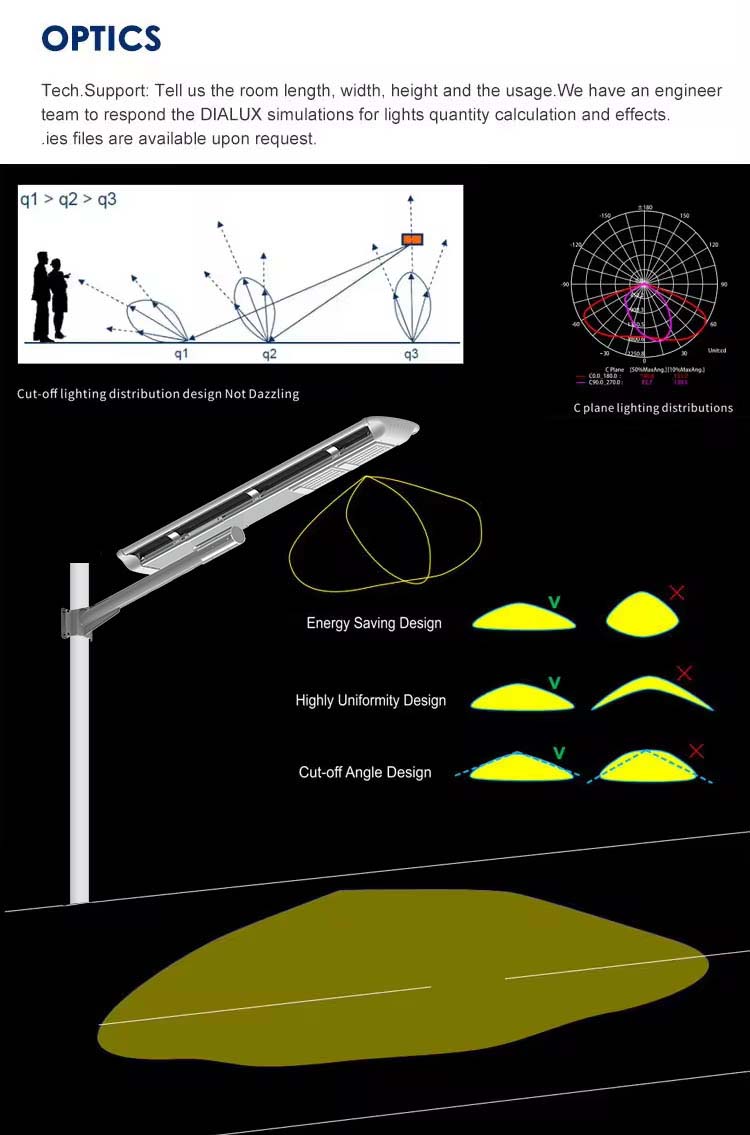

Tech.Support: Tell us the room length, width, height and the usage.We have an engineerteam to respond the DlALUX simulations for lights quantity calculation and effects.ies files are available upon request.
A: Yes, we welcome sample order to test and check quality. Low MOQ, 1pc for sample checking is available.Mixed samples are
acceptable.
Q2. How can I get more detail and price list of your solar product?
A: please contact us, our sales will send you more detail and solar light price list
Q3. What's the best price of this solar light?
A: We have discount frequently, you can contact our sales manager to get the best price
