Home Integrated Solar Street Light LRC Series 5W Road Streetlight Smd Ip65 Waterproof All In One Led Solar Street Light with motion sensor
Hot Products
solar light
Products
5W Mini integrated solar patio light with motion sensor
5W Road Streetlight Smd Ip65 Waterproof All In One Led Solar Street Light with motion sensor 5W Road Streetlight Smd Ip65 Waterproof All In One Led Solar Street Light with motion sensor 5W Road Streetlight Smd Ip65 Waterproof All In One Led Solar Street Light with motion sensor 5W Road Streetlight Smd Ip65 Waterproof All In One Led Solar Street Light with motion sensor 5W Road Streetlight Smd Ip65 Waterproof All In One Led Solar Street Light with motion sensor

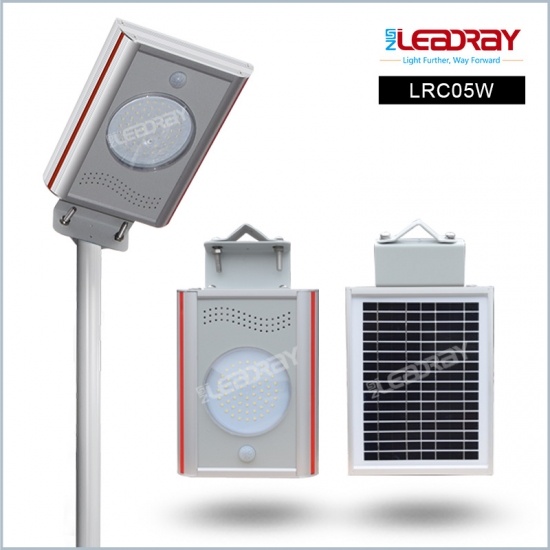

5W Road Streetlight Smd Ip65 Waterproof All In One Led Solar Street Light with motion sensor

  • Model No. :

    LRC05W

  • LED brand :

    LEADRAY

  • LED Power :

    5W

  • Solar Panel Power :

    16V 6W

  • Battery Type :

    Lithium LiFePO4 battery

  • Infrared senor :

    Available

  • Color :

    Silver gray

  • Port Of Dispatch :

    Qingdao

  • Payment :

    T/T, Paypal, Western Union

  • Original Region :

    China

  • Lead Time :

    3~5 days for samples;15~20 days for bulk
Contact Us
description

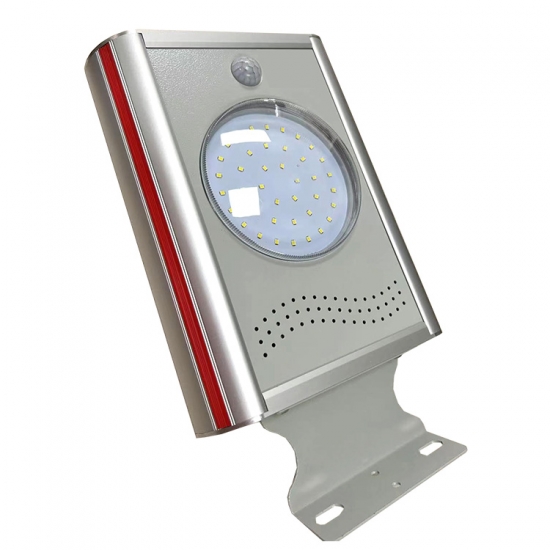

5W Mini All in one led solar patio light with motion sensor

5W Mini All in one led solar patio light with motion sensor: Integrated Design/Free Maintenance/Easy Installation/Environmental Friendly.
All in one led solar
Model No: LRC05W
Solar Panel Power:16V 6W(High efficiency monocrystalline silicon)
Battery Type: High efficiency LiFePO4 Battery
LED Brand: CREE
LED Power: 12V 5W
Luminous Flux:600Lm(TYP)
Lifespan: 50,000hrs
Beam Angel: 150x70°
Charging Time: 6-8 hours
Lighting Time(Full Power): 12-14hours
Lighting Time(30% saving mode): 39 hours (3~5 rainy days)
Color temperature: 2700~6500K
Discharging temperature: -20 ℃ to +60 ℃
Charging Temperature: 0 ℃ to +60 ℃
Storage temperature: -20 ℃ to +45 ℃
Mounting Height: 2-3m
Suggested Distance Between Lights: 6-8m
Material: Superior aviation aluminum AL6063-T5

Warranty: 1year

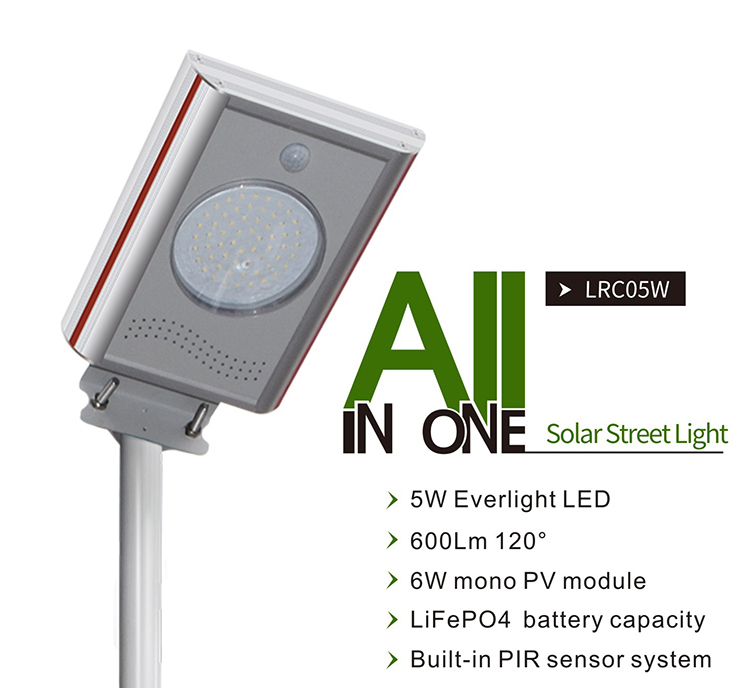

Model No. LRC05W
Physical Parameters
LED Brand 40
LED Qty 6m    EVERLIGHT
Power of PV Module (W) 6W
LIFEPO4 Battery Capacity (Ah) 5
PIR Sensor    YES
Dimension of Product (mm) 258*200*43
Net Weight (kg) 1.7
Dimension of Carton (mm) 400*270*125
Gross Weight (kg) 2.3
Light Parameters
Light Output (W) 5W
Typical Luminous Flux (Lm) 600
Color Temperature (K) 2700-6500
Beam Angle (°) 120°
Min. Working Time (Hours) Full Bright 13
Dim Mode 39
Environment Parameters
Charging Temperature (℃) 0 ℃ to +60 ℃
Discharing temperature (℃) -20 ℃ to +60 ℃
Storage temperature (℃) -20 ℃ to +45 ℃
Installation
Recommended Dia. of Top Pole (mm) 20~60
Recommended Installation Height (m) 2~3
Recommended Installation Distance (m) 8~10



Road Streetlight Smd Ip65 Waterproof 5W 20W 25W 30W All In One Led Solar Street Light


All in one led solar

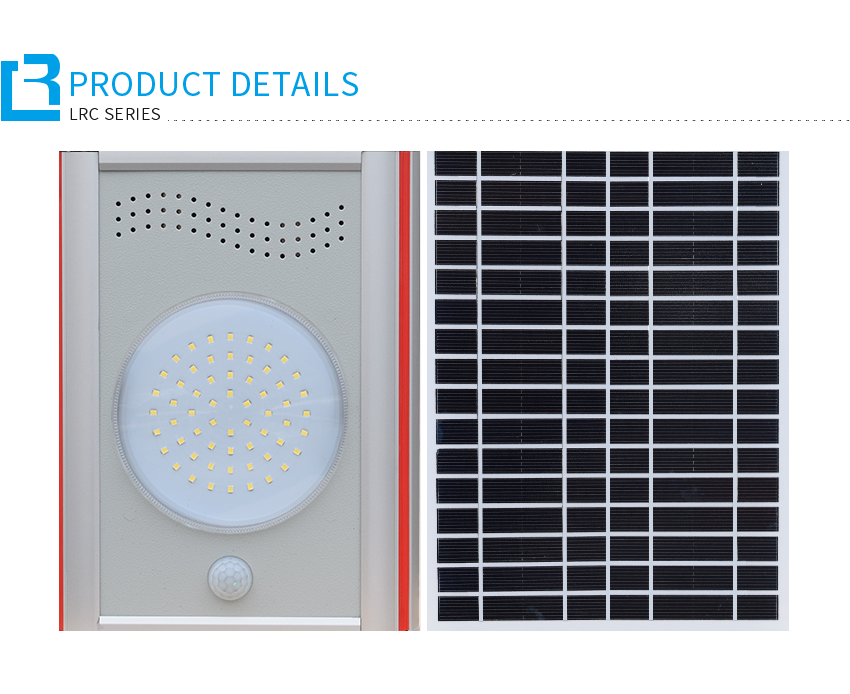

5W Mini All In One Led Solar Patio Light With Motion Sensor

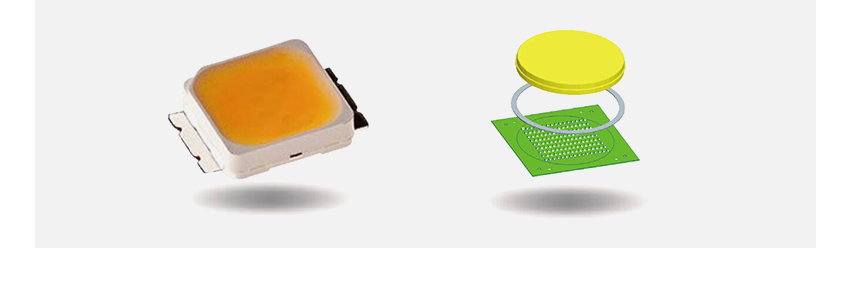

Everlight LED

67-22S package with high efficacy,

high CRI, low power consumption, wide viewing angle

120Lm/W, 30% brighter than other similar products

Longer working hours, 15% longer than other similar products

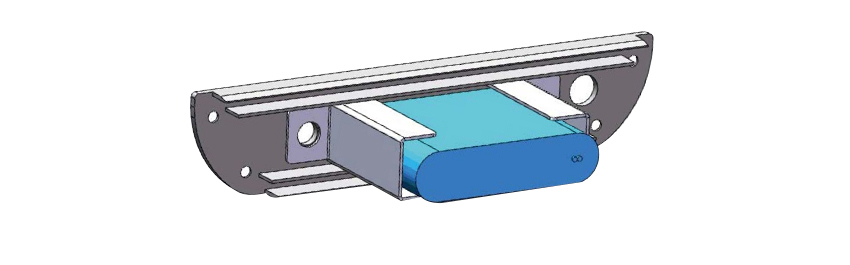

Innovative Battery Protection System

Built-in LiFePO4 class A battery, single cell with PTC

Over charging & over discharging protection

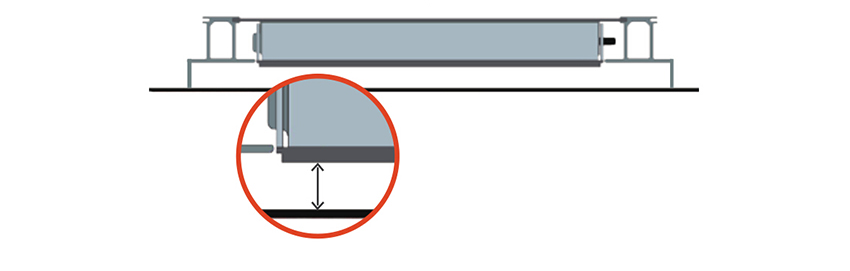

Original separate design with 5mm gap between battery and solar panel

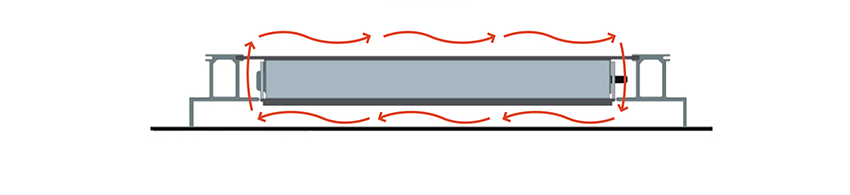

Air convection & thermal system design

More air flows and better heat

dissipation

All in one led solar
