Model No. :
LR-HME-5KWE/10KWELED brand :
LEADRAYLED Power :
0.2WSolar Panel Power :
0.77WBattery Type :
Lithium LiFePO4 BatteryInfrared senor :
NoColor :
SilverPort Of Dispatch :
QingdaoPayment :
T/T, Westunion, Paypal, Credit CardOriginal Region :
ChinaLead Time :
3~5 days for samples;15~20 days for bulk

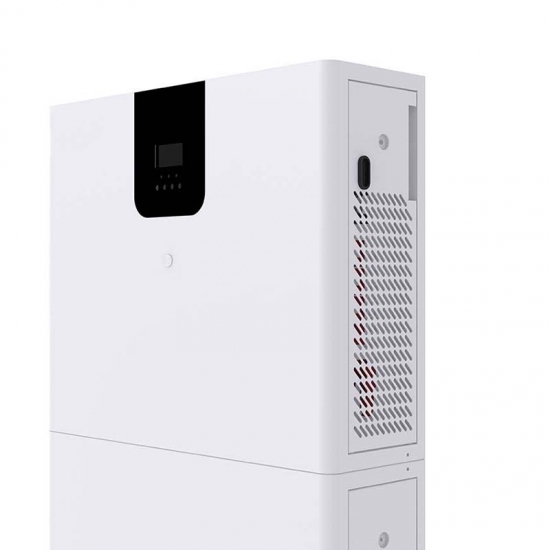

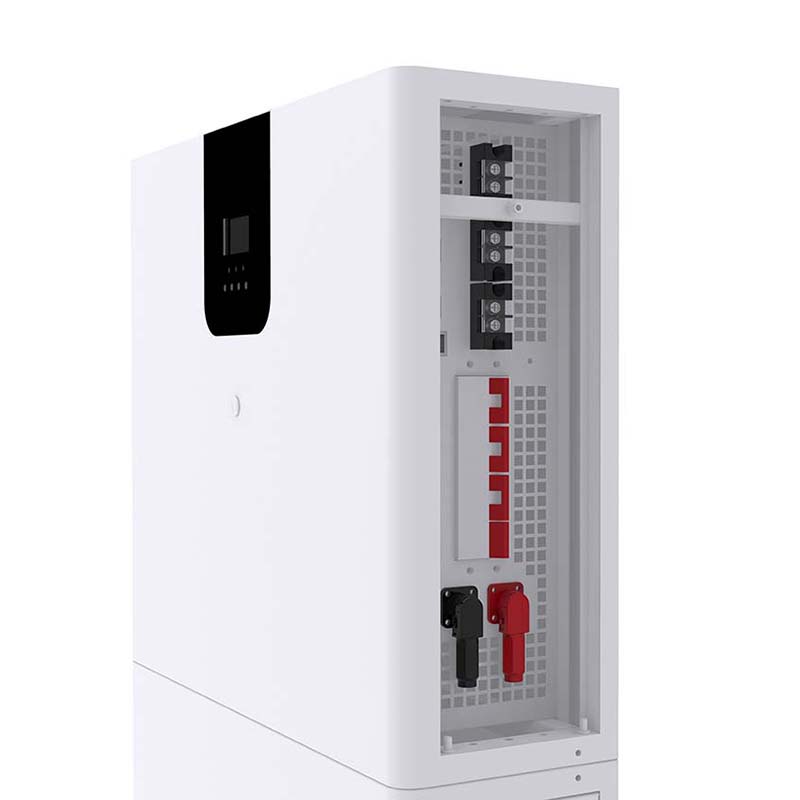

Model Number: LR-HME-10KWE，10.24kWh 200Ah Vertical solar power back up power station household solar energy storage system with Lifepo4 Battery Pack.

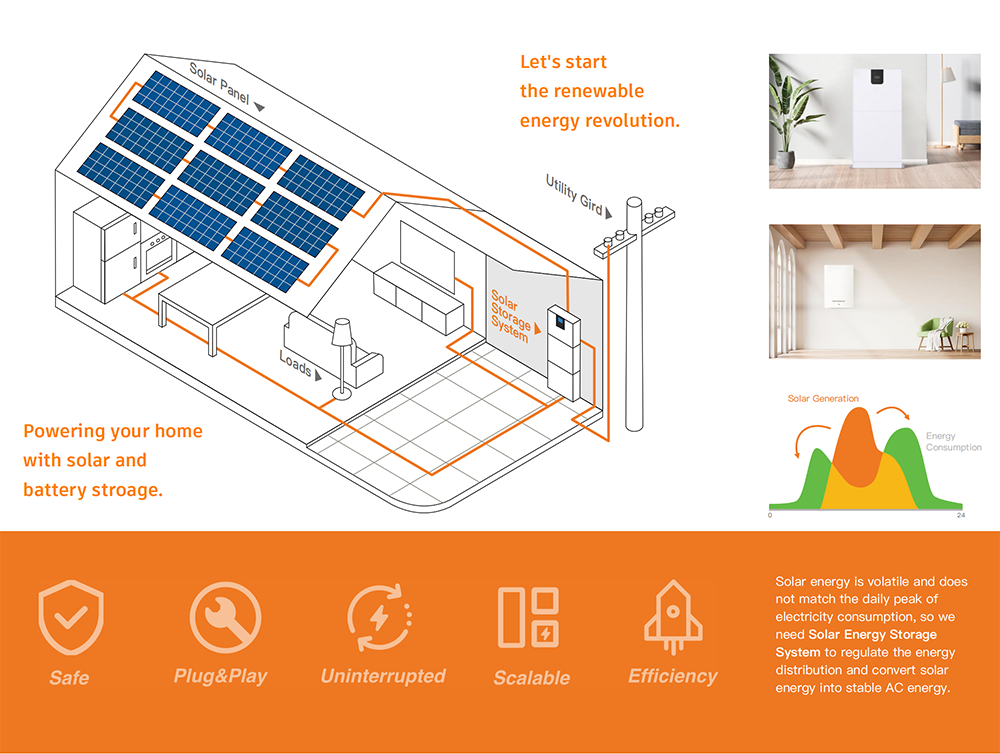

Model Number: LR-HME-5KWE，Solar power back up power station household solar energy storage system, 5KWE 10KWE LiFePO4 with 5.12KWh hybrid solar inverter.
Warranty: 3years
Free installation service: NOPlace of Origin: Shandong, China
Brand Name: Leadray

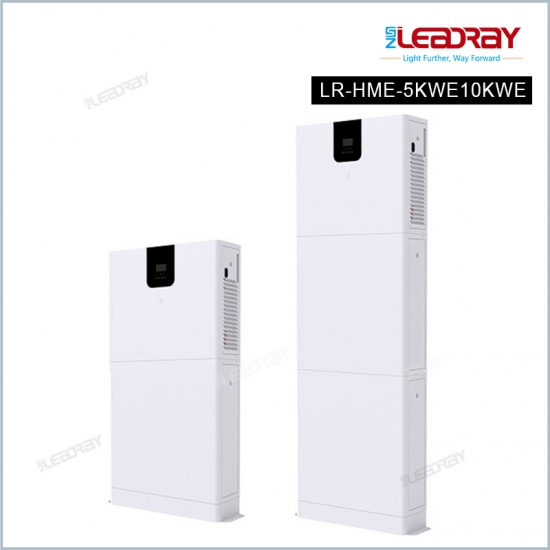

Model Number: LR-HME-5KWE/10KWE
Application: Home
Solar Panel Type: Monocrystalline Silicon, Polycrystalline Silicon
Battery Type: LiFePO4
Controller Type: MPPT
Load Power (W): Others
Output Frequency: 50Hz
Pre-sales project design: Y
Solar Charge Type: MPPT
Product name: 10KWE energy storage system
PV Maximum Output Power(W): 5000W
AC Maximum Charge Power(W): 3150W
Maximum Output Current(A): 30A
Frequency: 50Hz
Product Size: 1190*600*184mm 1800*600*184mm
N.W.: 140KG
Communication: RS485/CAN/WIFI
LR-HME-10KWE Specification
|
Number of batteries(PCS)
|
2PCS
|
|
Battery Capacity(Ah)
|
200Ah (10240Wh )
|
|
Battery Rated Voltage(V)
|
51.2V
|
|
Battery Working Voltage Range(V)
|
44.8-57.6V
|
|
Max. Charging/Discharging Current(A)
|
100A
|
|
Solar Charge Type
|
MPPT
|
|
PV Maximum Output Power(W)
|
5000W
|
|
PV Charging Current Range(A)
|
0-80A
|
|
PV Operating Voltage Range(V)
|
120-500V(120-450V/MPPT Voltage Range)
|
|
AC Maximum Charge Power(W)
|
3150W
|
|
AC Charging Current Range(A)
|
0-60A
|
|
Rated Input Voltage(V)
|
220/230Vac
|
|
Input Voltage Range(V)
|
90-280Vac
|
|
Rated Output Power(W)
|
5000W
|
|
Maximum Output Current(A)
|
30A
|
|
Frequency
|
50Hz
|
|
Overload Current(A)
|
35A
|
|
Rated Output Power(W)
|
5000W
|
|
Maximum Peak Power(W)
|
10KVA
|
|
Power Factor
|
1
|
|
Rated Output Voltage (V)
|
230Vac
|
|
Frequency
|
50Hz
|
|
Auto Switch Period
|
＜15ms
|
|
Communication
|
RS485/CAN/WIFI
|
|
Noise
|
60dB(A)
|
|
Designed Life-span
|
6000
|
|

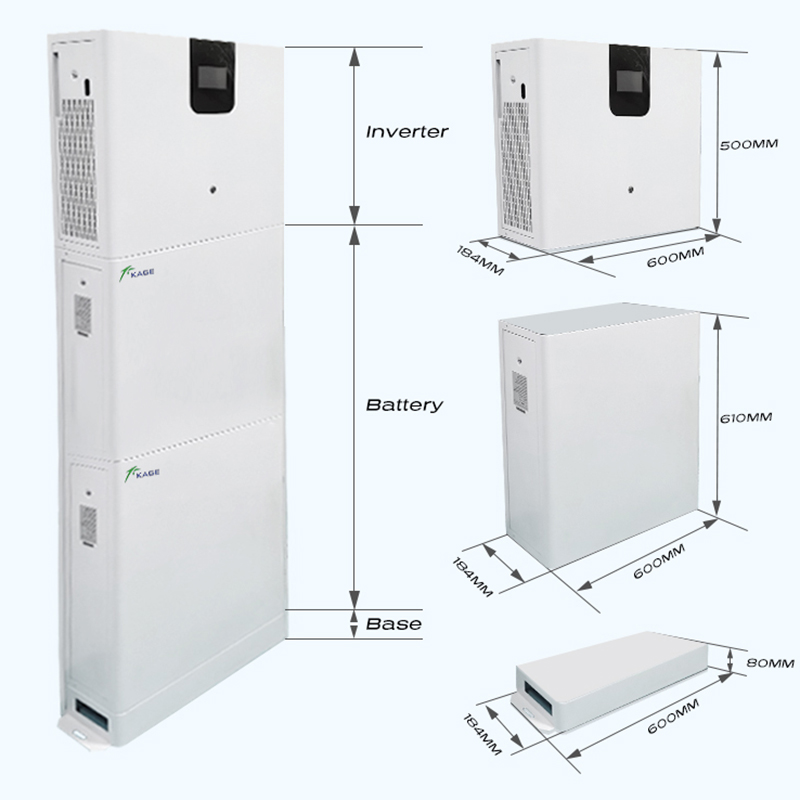

Product Size
|
1800*600*184mm
|
|
N.W.
|
140KG
|
|
G.W.
|
0KG
|
|
Number of batteries(PCS)
|
1PCS
|
|
Battery Capacity(Ah)
|
100Ah (5120Wh )
|
|
Battery Rated Voltage(V)
|
51.2V
|
|
Battery Working Voltage Range(V)
|
44.8-57.6V
|
|
Max. Charging/Discharging Current(A)
|
100A
|
|
Solar Charge Type
|
MPPT
|
|
PV Maximum Output Power(W)
|
5000W
|
|
PV Charging Current Range(A)
|
0-80A
|
|
PV Operating Voltage Range(V)
|
120-500V(120-450V/MPPT Voltage Range)
|
|
AC Maximum Charge Power(W)
|
3150W
|
|
AC Charging Current Range(A)
|
0-60A
|
|
Rated Input Voltage(V)
|
220/230Vac
|
|
Input Voltage Range(V)
|
90-280Vac
|
|
Rated Output Power(W)
|
5000W
|
|
Maximum Output Current(A)
|
30A
|
|
Frequency
|
50Hz
|
|
Overload Current(A)
|
35A
|
|
Rated Output Power(W)
|
5000W
|
|
Maximum Peak Power(W)
|
10KVA
|
|
Power Factor
|
1
|
|
Rated Output Voltage (V)
|
230Vac
|
|
Frequency
|
50Hz
|
|
Auto Switch Period
|
＜15ms
|
|
Communication
|
RS485/CAN/WIFI
|
|
Noise
|
60dB(A)
|
|
Designed Life-span
|
6000
|
|
Product Size
|
1190*600*184mm
|
|
Package Size
|
0mm
|
|
N.W.
|
80KG
|

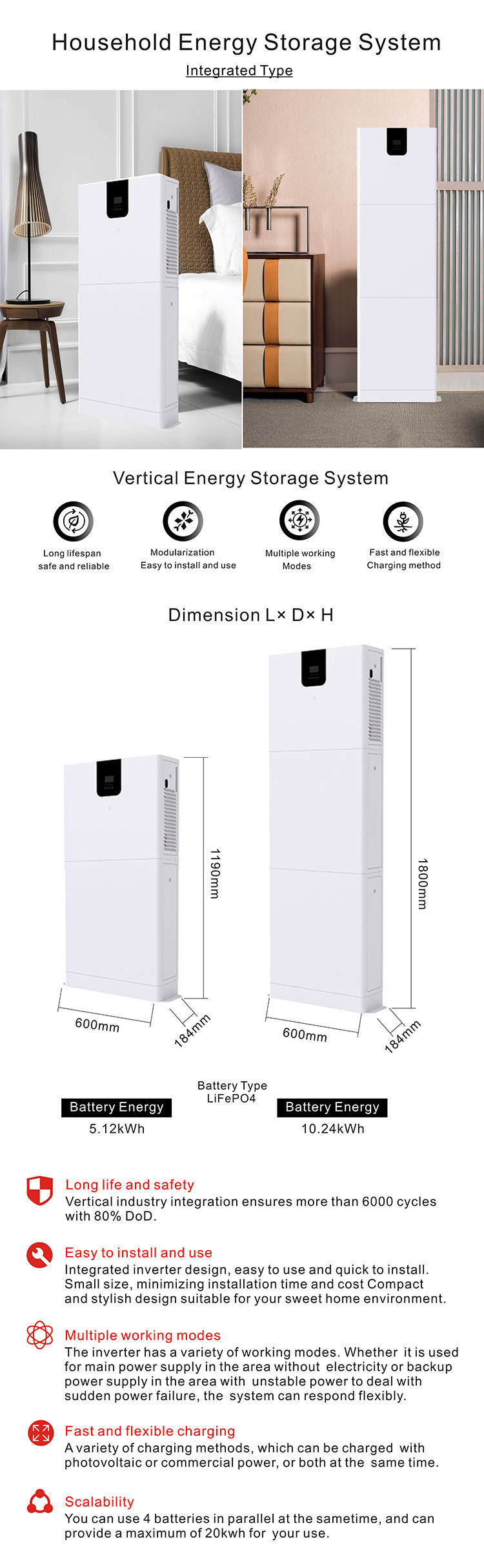

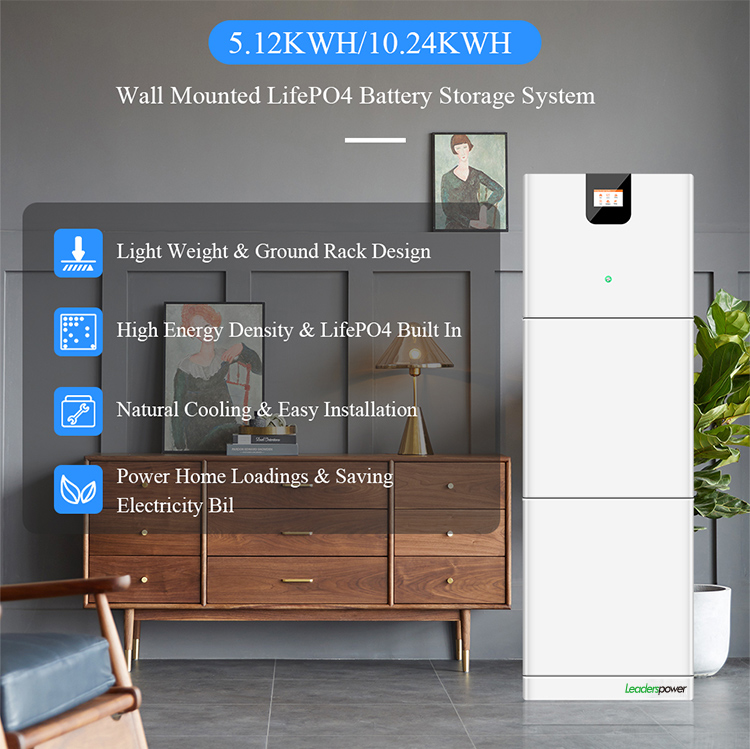

51.2V Vertical Home Storage Battery Energy Storage System 200Ah 10.24KWH with inverter for Solar Energy Storage Systems

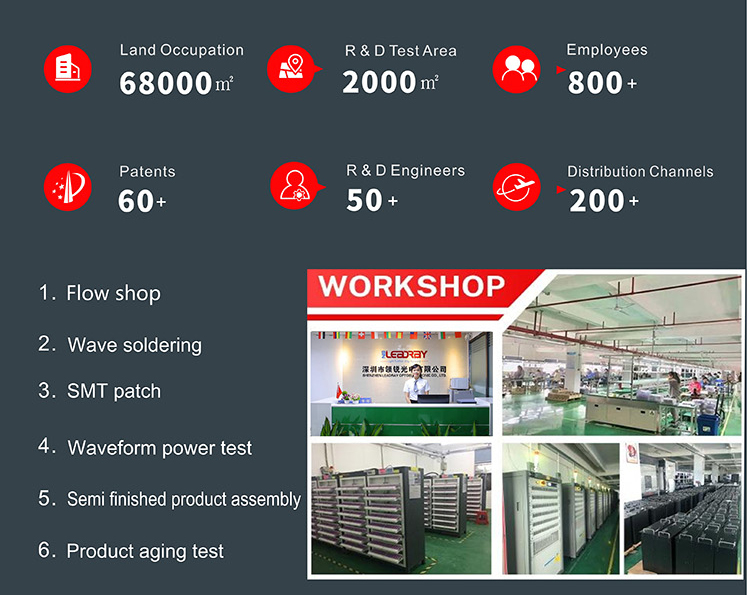

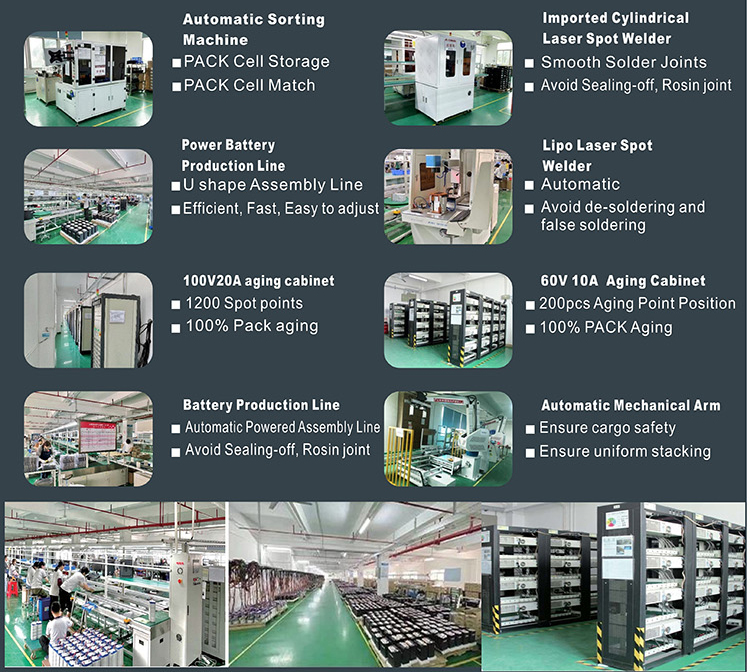

The company has 26,000 square meters of battery PACK production linethe use ofadvanced Mes production execution system, to achieve accurate management from parts to finished product delivery; With more than200 sets of professional production equipment, such as automatic laserspotweldingmachine,automatic sorting machine, the daily output of10000 sets,the annual output can reach 2.56GWH;
With an independent laboratory and nearly 30 sets of experimental equipment, we can conduct comprehensive performance testing of products to ensure that theproducts meet the design standards. With more than 1600 points,thebattery pack burn-in equipment can realize the full inspection burn-in test of every battery pack delivered to the customer.
The company has a professional doctor led research and development team， independent research and development design of "LEADRAY" brand power and energy storage battery products.
We have passed lS09001:2015 quality management system and lso 14001:2015 Environmental management system certification and OHSAS 18001: products have passed the international certification and obtained 8 invention patents, 17 utility model patents,2 appear ance patents and 11 software Copyrights, and won the 2021 Guangdong Province specialized new enter prise.
Quality control advantages
1. In line with the principle that meeting the needs ofcustomers is our mission, the whole team of
LEADRAY will devote themselves to meeting the needs of customers.
With years ofexperience in lithium battery manufacturing, and alarge number of test equipment.
2. It can better guarantee the quality of products, and can prevent bad products from being in the
factory. Reduce customer complaint rate and make customers worry-free.
to ensure that the after-sales service can be responded and resolved within 24 hours.
-
