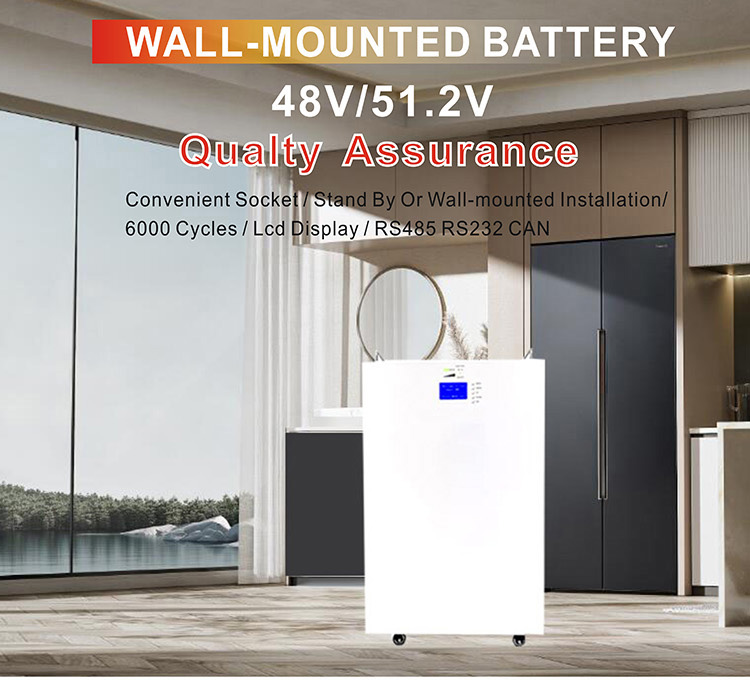

Support Wall-mounted and stand by install.With small wheels, easy to move，can also fix the wheels and stand stably on the ground
- Integrated Solar Street Light LRC-H/I/J/E Series
- Integrated Solar Garden Lights
- Integrated Solar Street Light LRC Series
- Solar LED Flood Light
- Solar CCTV Camera
- Solar Billboard Light LFB36W
- Split Solar Street Light LBA Series
- Solar Energy Fan with Solar Panel
- Integrated Solar Parking Lot Light LP1 Series
- All In Two Combination Solar Street Light LC2 Series
- Integrated Solar Advertising Light Box
- Solar Energy Storage Battery
- Portable Power Station
- Other solar lamps
-
IP65 Waterproof Luminous Flux 10800Lm 30W-120W Outdoor Solar Street Light SystemAll In One Solar Street Light: Integrated Design/Free Maintenance/Easy Installation/Environmental Friendly.
-
High lumen Integrated remote control ip65 outdoor waterproof 20w 40w 60w all in one led solar street lightElegant Integrated Design,High class Aluminum alloy case Easy maintenance, battery replacement can be completed on the lamp pole
-
LED Solar Street Light Price 150W High Lumens Solar Motion Sensor LightLamp Power：150-200W Solar Panel Power：180-260W Battery Capacity：1075-1536Wh PIR Motion Sensor Original Integrated concept, Double arc streamline Element Design; Innovative Battery Protection System； LED Modular Thermal Design； Typhoon Resistant。 CREE LED without gold wire packaging, creates a first-class light source; Rectangular beam design, with bat wing light distribution; 170Lm/W, 30% brighter than other similar products; Longer working hours, 15% longer than other similar products. The well optimized light distribution, made for a more uniform and wider lighting area; Lens with exhaust valve, prevent water vapor gathered & makes longer lifespan; Original thermal system design, innovative heat sink with IP67 PG head.
-
Rechargeable Portable LED Work Light 100W Equivalent Waterproof LED Flood Lights for Outdoor CampingLighting solutions service： Lighting and circuitry design, Onsite metering, DIALux evo layout, LitePro DLX layout, auto CAD layout, Agi32 layout, Project Installation
Products

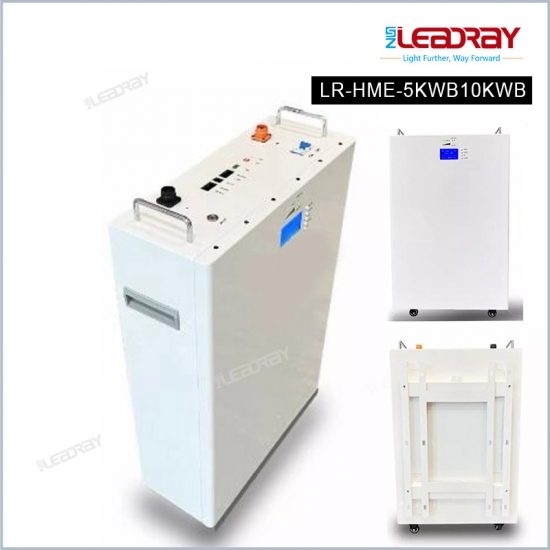

Bluetooth Smart Solar System Wall Power 200 Ah Lifepo4 Wall-mounted Price Energy Storage Lithium System 10Kwh Battery
Model No. :
LR-HME-5KWB10KWBLED brand :
LEADRAYLED Power :
0.2WSolar Panel Power :
0.77WBattery Type :
Lithium LiFePO4 BatteryInfrared senor :
NoColor :
WhitePort Of Dispatch :
QingdaoPayment :
T/T, Paypal, Western UnionLead Time :
3~5 days for samples;15~20 days for bulk
description
Special Features:Type C, Air Compressor Controller Type:MPPT
Inverter Type:Modified Sine Wave
Battery Type:LiFePO4 Power Source:Solar Panel
BMS Discharge Cut-Off Voltag(V):43.2V
MAX Continuous Discharging Current(A):100A
Recommended Charge Current(A):50A
Communication Interface:CAN,RS232,RS485
Product Size:675*485*191.5mm N.W.:97KG Wall Mounted

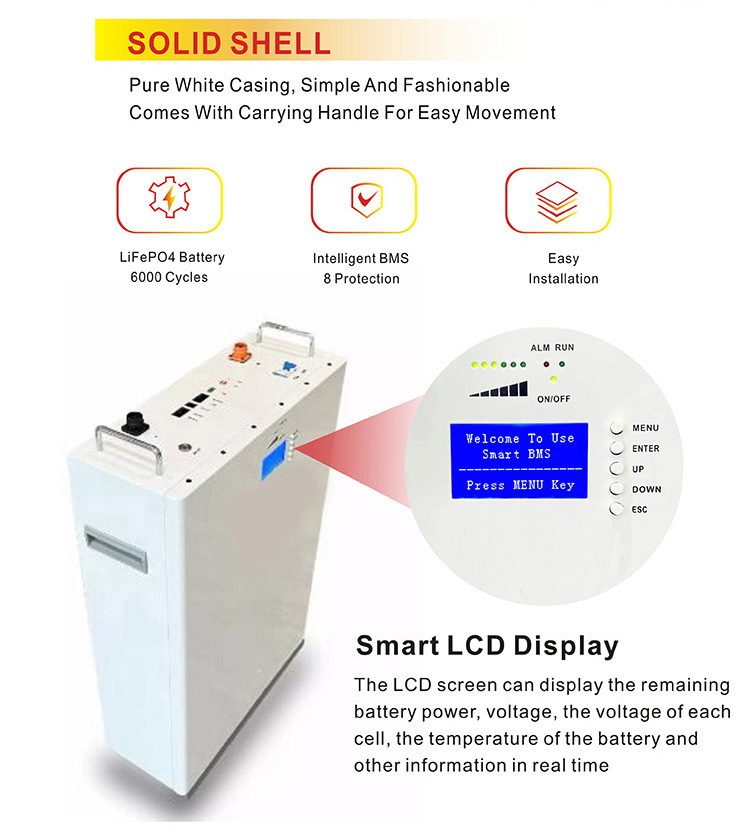

The LCD screen can display the remaining battery power, voltage, the voltage of each cell, the temperature of the battery and other information in real time
Inverter Type:Modified Sine Wave
Battery Type:LiFePO4 Power Source:Solar Panel
Model Number:LR-HME-10KWB(51.2V)
Brand Name:Leadray Place of Origin:Shandong, China
Recommended Charge Voltage(V):57.6VBMS Discharge Cut-Off Voltag(V):43.2V
MAX Continuous Discharging Current(A):100A
Recommended Charge Current(A):50A
Communication Interface:CAN,RS232,RS485
Product Size:675*485*191.5mm N.W.:97KG Wall Mounted
Specification Product details
|
Electrical
Characteristics
|
Nominal Voltage
|
51.2V
|
|
Nominal Capacity
|
200Ah
|
|
|
Energy
|
10240Wh
|
|
|
Internal Impedance
|
≤180mΩ
|
|
|
Battery Delivery Voltage
|
51.2V~55.2V
|
|
|
Cycle life
|
6000 cycles
|
|
|
Standard
Charge&Discharge |
Standard
Charge&Discharge |
100A
|
|
Max discharge current
|
100A(continuous)
|
|
|
Standard discharging method
|
50A constant current discharge to 40V
|
|
|
Charge voltage
|
58.4V±0.05V
|
|
|
Others
|
Communication Port
|
RS232,RS485,CAN
|
|
Working Temperature/°C
|
Charge 0~45℃, Discharge -20~60℃
|
|
|
Battery Type
|
Lithium iron phosphate
|
|
|
Weight
|
92KG
|
|
|
Dimension
|
675*485*190mm
|
Advantages:
1. lithium-ion batteries 48v ,higher energy density,smaller volumn for household.
2. Grade a lifepo4 battery 48v 100ah,high quality battery cell.
3. Support customization,5kw/10kw/15kw/20kw power wall,support Connected in parallel mode for expansion.
5. Home solar energy system:this battery pack is designed for household solar energy storage systems.
6. BMS:the battery packs built-in BMS monitors its operation and prevents the battery from operating,give the battery multiple protection.
What are the details of power wall lifepo4 battery pack？

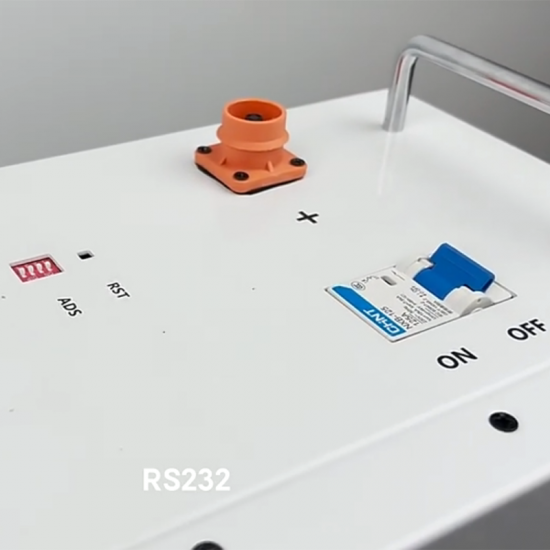

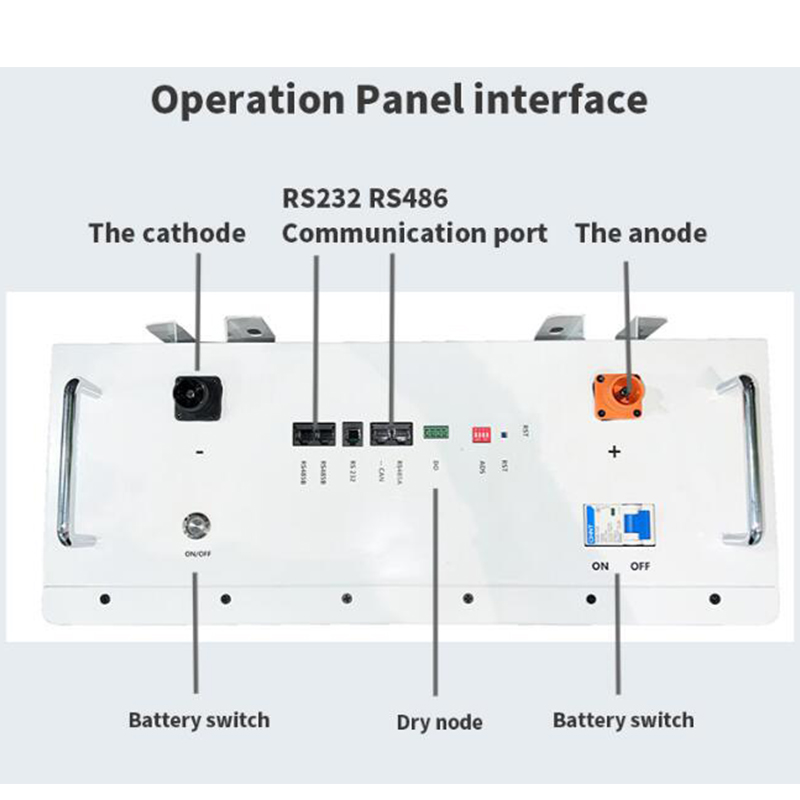

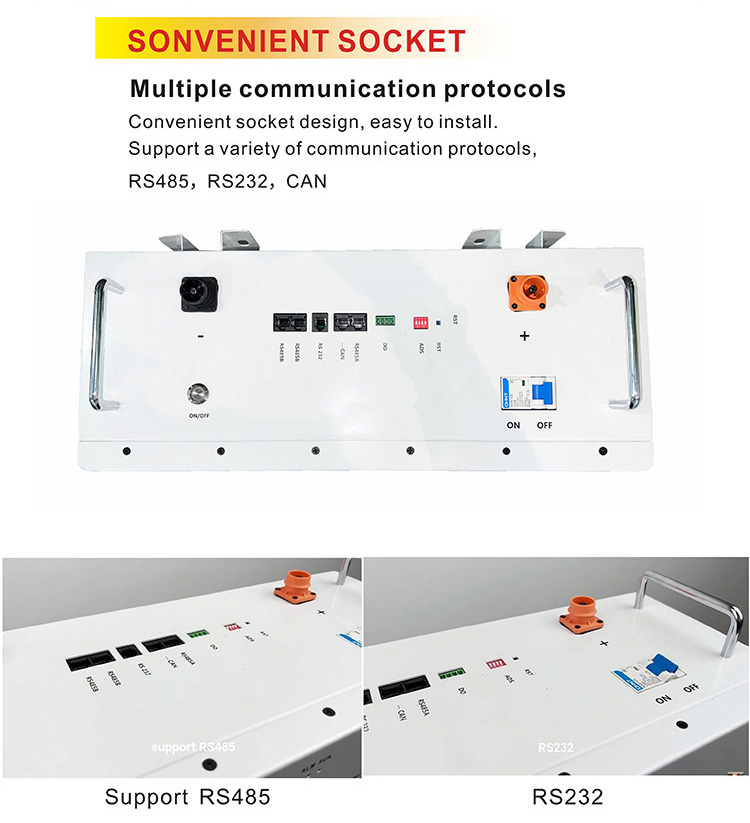

Convenient socket, multiple communication protocols
Convenient socket design, easy to install. Support a variety of communication protocols,RS485，RS232，CAN

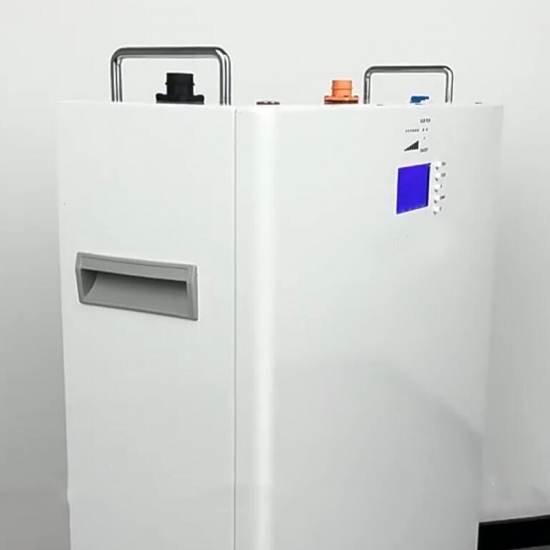

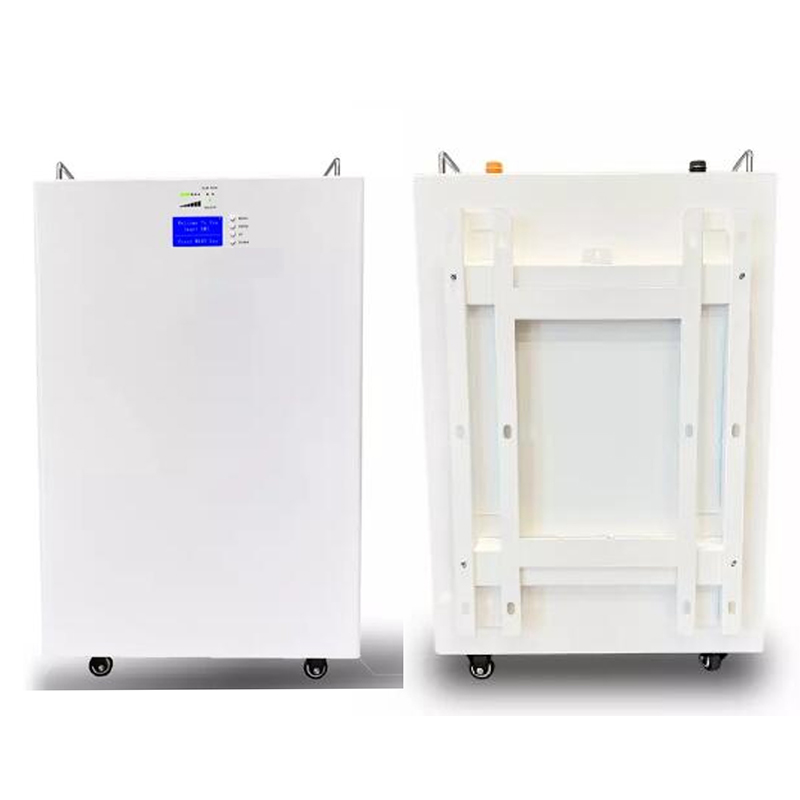

Various installation methods

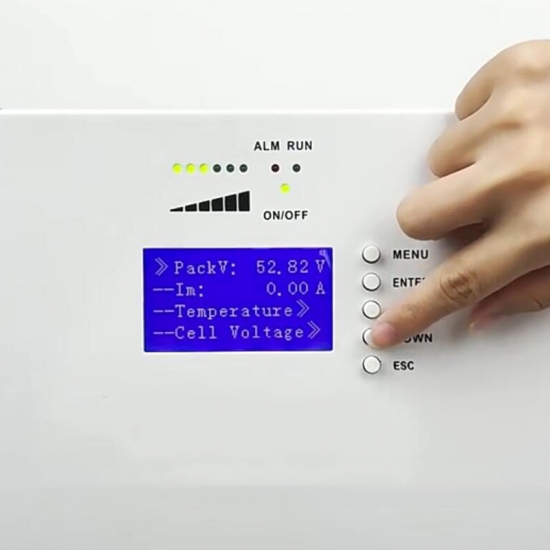

Smart LCD Display
6000 cycles for home energy storage
Weight:92 Type Split
Communication Port: CAN, RS232, RS485 Protection Class:IP65
Grid connection:Off grid, Hybrid grid Battery type:LiFePO4 Lithium Ion Battery
Product name：solar energy storage system 10kwh lithium ion battery
Nominal Voltage：51.2V Cycle life：6000 Cycles
OEM/ODM：Yes(Accepted) Battery cell：LFP 3.2V 100Ah Prismatic aluminium shell cells
Protection：over charge/discharge/current,short circuit,high temperature
Communication：RS485/232,CANBUS

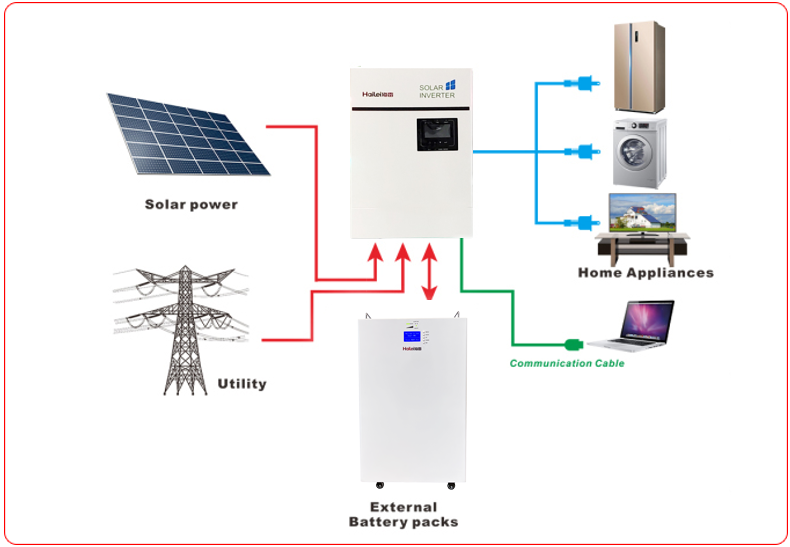

A Set of energy storage system-
Smart Solar System Wall Power 200 Ah Lifepo4 Wall-mounted Price Energy Storage Lithium System 10Kwh Battery

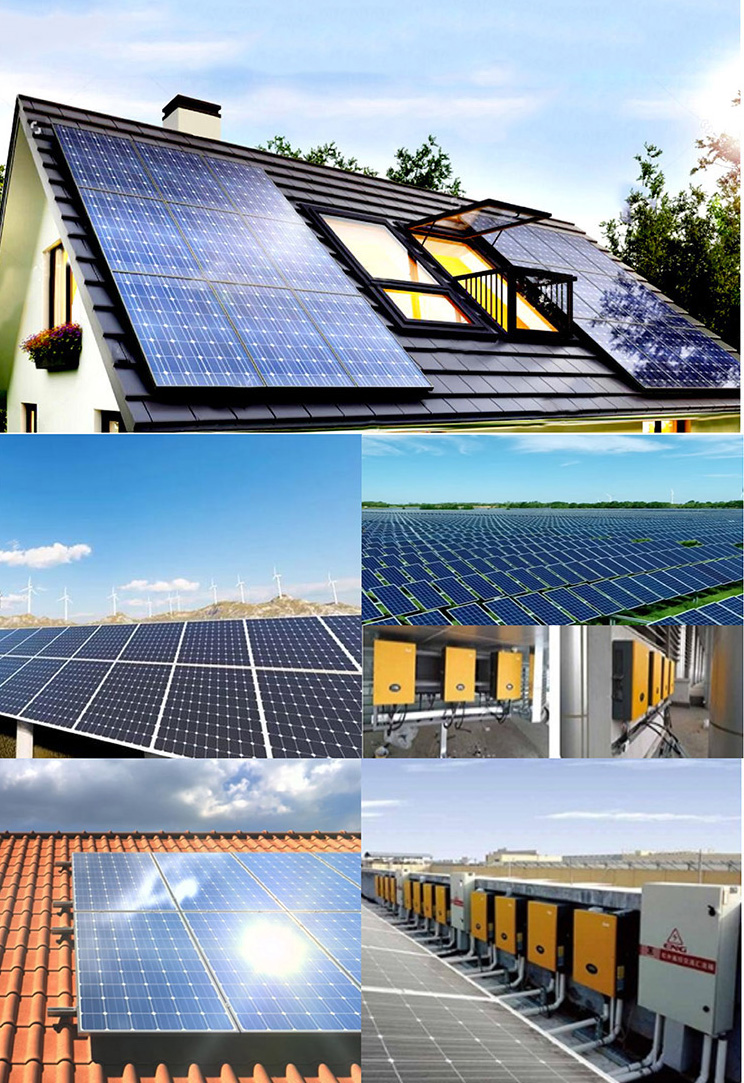

Wall mount lithium battery Application-
Off-grid solar power system 48v 5kwh 10kwh home energy storage manufacturer lifep04 batteries

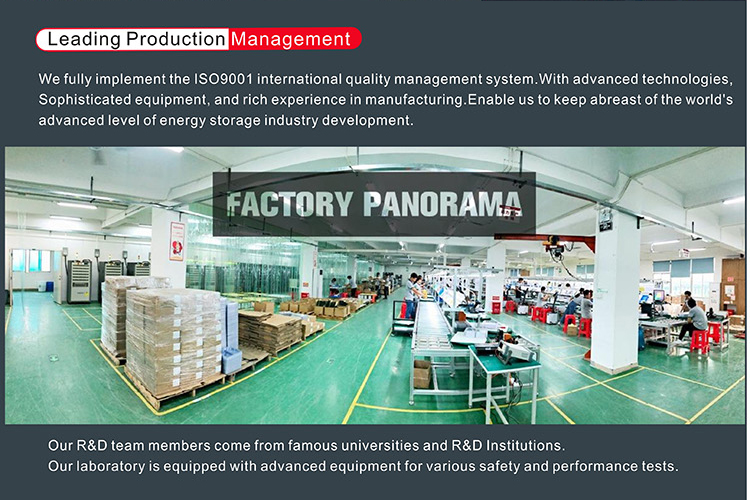

The company has 26,000 square meters of battery PACK production linethe use ofadvanced Mes production execution system, to achieve accurate management from parts to finished product delivery; With more than200 sets of professional production equipment, such as automatic laserspotweldingmachine,automatic sorting machine, the daily output of10000 sets,the annual output can reach 2.56GWH;
With an independent laboratory and nearly 30 sets of experimental equipment, we can conduct comprehensive performance testing of products to ensure that theproducts meet the design standards. With more than 1600 points,thebattery pack burn-in equipment can realize the full inspection burn-in test of every battery pack delivered to the customer.
The company has a professional doctor led research and development team， independent research and development design of "LEADRAY" brand power and energy storage battery products.
We have passed lS09001:2015 quality management system and lso 14001:2015 Environmental management system certification and OHSAS 18001: products have passed the international certification and obtained 8 invention patents, 17 utility model patents,2 appear ance patents and 11 software Copyrights, and won the 2021 Guangdong Province specialized new enter prise.
Quality control advantages
1. In line with the principle that meeting the needs ofcustomers is our mission, the whole team of
LEADRAY will devote themselves to meeting the needs of customers.
With years ofexperience in lithium battery manufacturing, and alarge number of test equipment.
2. It can better guarantee the quality of products, and can prevent bad products from being in the
factory. Reduce customer complaint rate and make customers worry-free.
3. The experienced after-sales team can provide after-sales service in both Chinese and English
to ensure that the after-sales service can be responded and resolved within 24 hours.
to ensure that the after-sales service can be responded and resolved within 24 hours.
