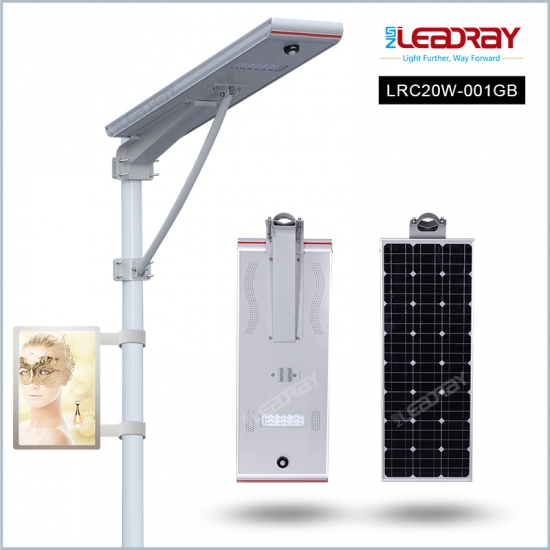

Model No. :
LRC20W-001GBLED brand :
LEADRAYLED Power :
20WSolar Panel Power :
18V 80WBattery Type :
Lithium LiFePO4 BatteryInfrared senor :
AvailableColor :
SilverPort Of Dispatch :
QingdaoPayment :
T/T, Paypal, Western UnionOriginal Region :
ChinaLead Time :
3~5 days for samples;15~20 days for bulk
Led Modular Thermal System Design/Battery Protection System Design/Typhoon resistance Design/Aluminum alloy body material light box
pecification
|
Quotation Sheet for Integrated Solar Street Light With Light box
|
||
|
Solar Panel
|
Max Power
|
18V 80W
|
|
Type
|
Monocrystalline
|
|
|
Lifespan
|
25 years
|
|
|
Battery
|
Type
|
Lithium LiFePO4 battery
|
|
Capacity
|
12.8V 33Ah (422.4Wh)
|
|
|
Lifespan
|
8-10 years
|
|
|
LED Source
|
Max Power
|
12V 20W
|
|
Led Chip Brand
|
CREE LED
|
|
|
Luminous Flux
|
2800Lm(TYP)
|
|
|
Lifespan
|
50,000hrs
|
|
|
Color Temperature
|
2700-6500K
|
|
|
CRI
|
>75Ra
|
|
|
Beam Angle
|
150x70°
|
|
|
AD light box
|
Max Power
|
12V 20W
|
|
Led Chip Brand
|
Bridgelux LED
|
|
|
Luminous Flux
|
2400Lm(TYP)
|
|
|
Lifespan
|
50,000hrs
|
|
|
Color Temperature
|
6500-7000K
|
|
|
Light box size
|
900*600*120mm
|
|
|
Working time
|
4-6 hours
|
|
|
Mounting Height
|
2.5-3m
|
|
|
AD Canvas
|
Imported canvas (customized)
|
|
|
Charge Time
|
By Strong Sunshine
|
6-8 hours
|
|
Lighting Time
|
Full Power
|
12-14hours
|
|
30% saving mode
|
39 hours (3~5 rainy days)
|
|
|
Environment Parameter
|
Discharing temperature
|
-20 ℃ to +60 ℃
|
|
Charging Temperature
|
0 ℃ to +60 ℃
|
|
|
Storage temperature
|
-20 ℃ to +45 ℃
|
|
|
Installation
|
Mounting Height
|
5-6m
|
|
Space Between Lights
|
18-20m
|
|
|
Material
|
Superior aviation aluminum AL6063-T5
|
|
|
Certification
|
CE RoHs SASO IEC
|
|
|
IP Rating
|
IP65
|
|
AD BOX System
Power:20w
Lumen flux:2800lm(TYP)
Working Hours:4-6hours
Mounting Height:2.5-3M
Feature：

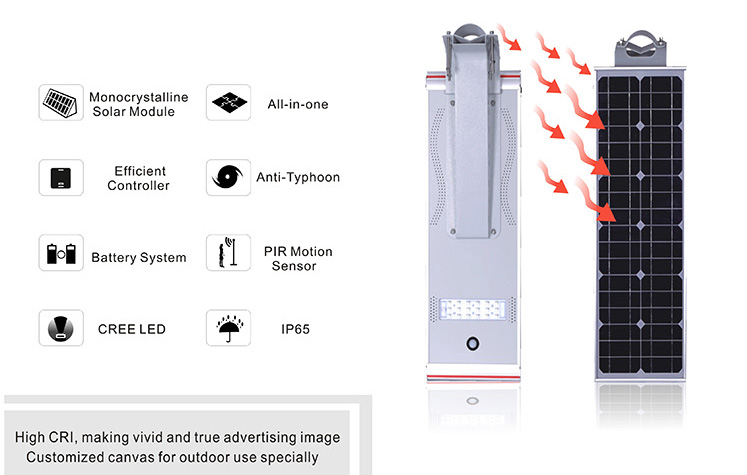

Dual-system Protection Design Ads function High CRI, making vivid and true advertising image.
Customized canvas for outdoor use specially.
1. CREE LED without gold wire packaging, creates a first-class light source.
2. 140Lm/W, 30% brighter than other similar products.
3. Longer working hours, 15% longer than other similar products. LED Modular System Design

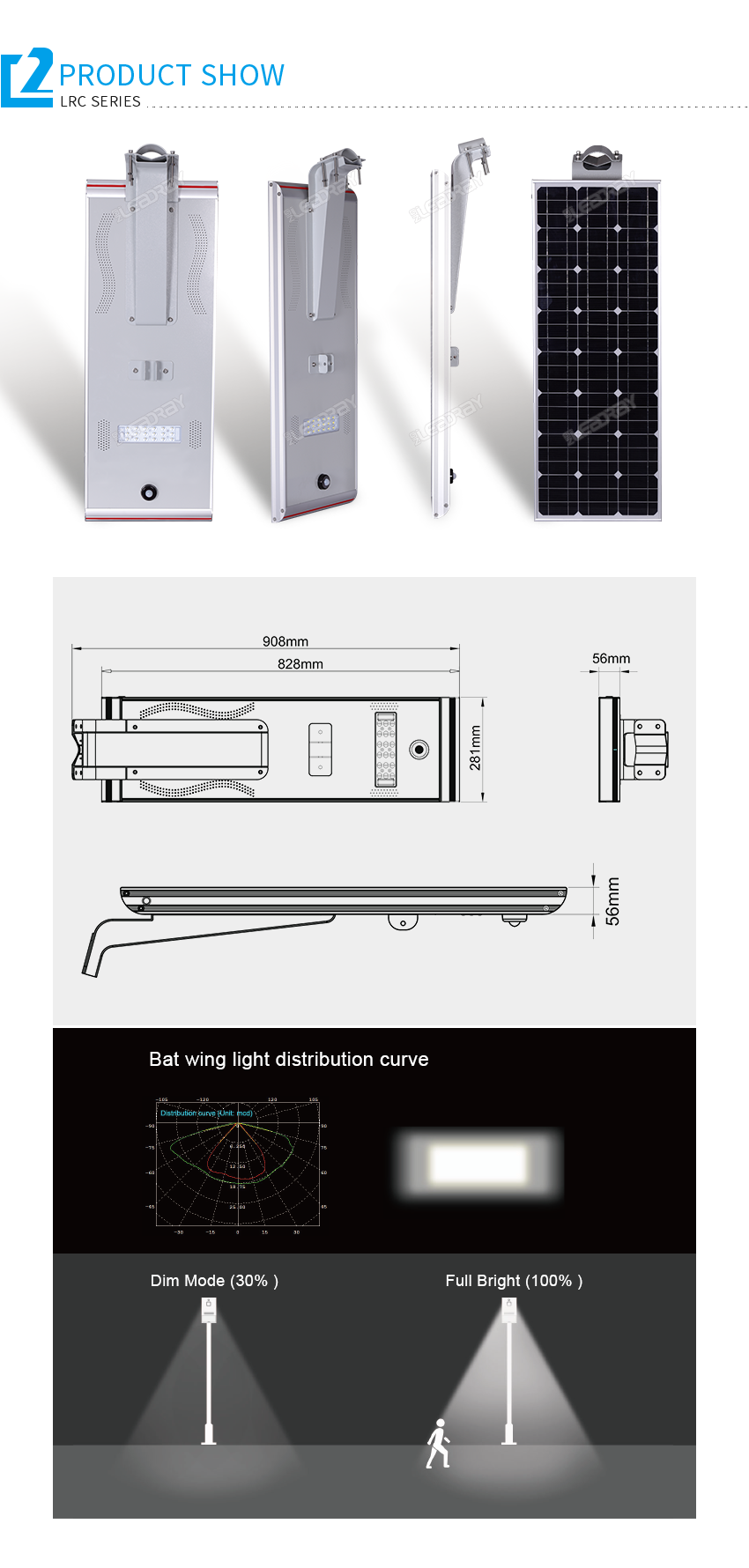

4. Rectangular beam design for road lighting, with bat wing light distribution.
5. The well optimized light distribution, made for a more uniform and wider lighting area.
6. Lens with exhaust valve, prevent water vapor gathered & makes longer lifespan.
7. Original thermal system design, innovative heat sink with IP67 PG head. Innovative Battery Protection System
8. Built-in LiFePO4 class A battery, single cell with PTC.
9. Superior IC with military standards in battery protection board.
10. Waterproof, damp proof, explosion proof Over charging & over discharging protection.

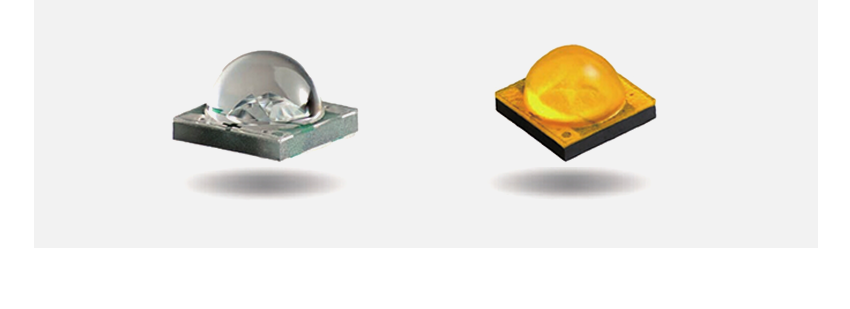

Cree® XLamp® XT-E LEDs
CREE LED without gold wire packaging, creates a first-class light source
140Lm/W, 30% brighter than other similar products
Longer working hours, 15% longer than other
Innovative Battery Protection System
Built-in LiFePO4 class A battery, single cell with PTC Over charging & over discharging protection

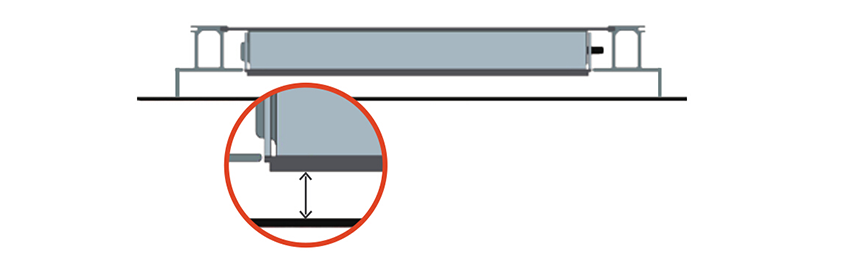

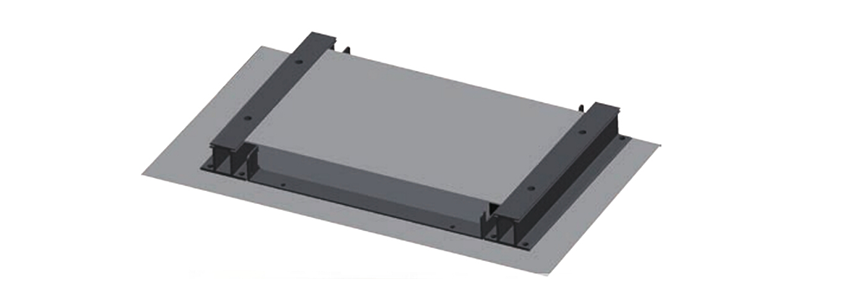

Original separate design with 5mm gap between battery and solar panel

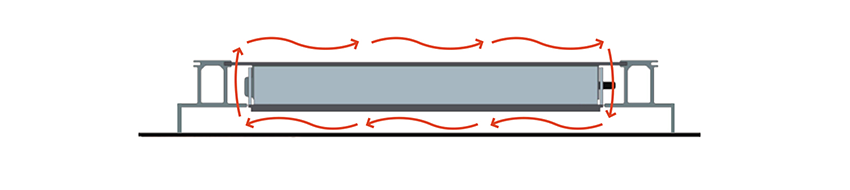

Air convection & thermal system design, More air flows and better heat dissipation
-
