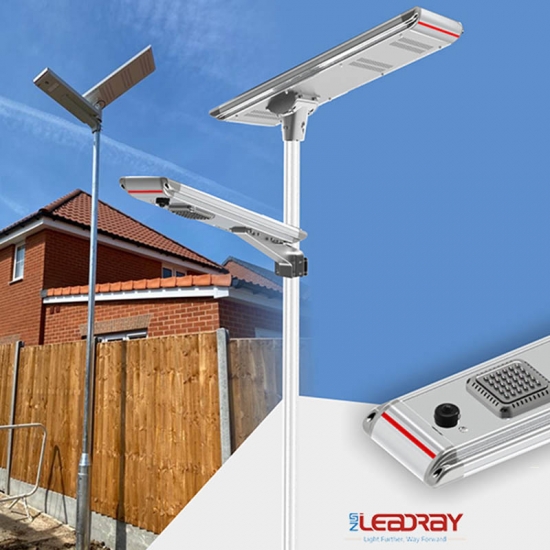

High Quality Battery 40Watt Combined Solar Lamp Full led solar street integrated solar street light
  • Model No. :

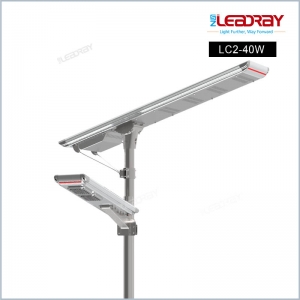

    LC2-40W
  • LED brand :

    LEADRAY
  • LED Power :

    40W
  • Solar Panel Power :

    18V 130W
  • Battery Type :

    Lithium LiFePO4 Battery
  • Infrared senor :

    Available
  • Color :

    Silver
  • Port Of Dispatch :

    Qingdao
  • Payment :

    T/T, Paypal, Western Union
  • Original Region :

    China
  • Lead Time :

    3~5 days for samples;15~20 days for bulk
Contact Us
description

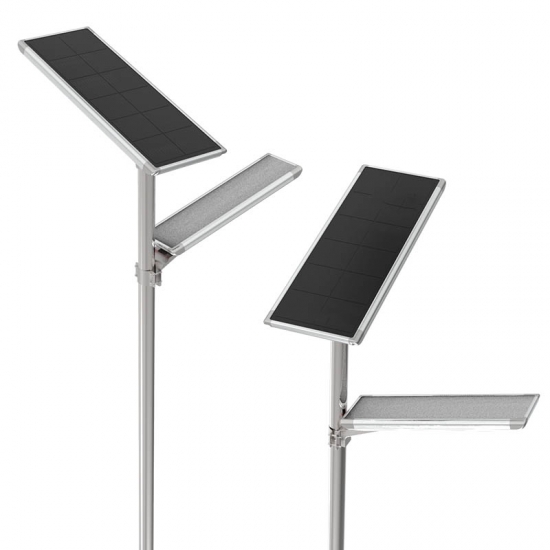

Outdoor waterproof 20w 30w 40w all in one solar led street light integrated motion sensor lamp.

LC2combination solar street light, adopt mono crystalline silicon solar panel with higher conversion rate, high luminous efficiency LED chips, ultra-long-life lithium battery pack, high-efficiency intelligent controller and human body sensing technology; it has an integrated design concept, which is convenient for installation and maintenance; The solar radiation intensity and lighting direction can be adjusted arbitrarily to the direction of solar panels and lamp head, providing a more flexible solution for the harsh lighting needs of complex roads.


Lamp Power:20-40W

Solar Panel Power:80-130W

Battery Capacity:460-691Wh

PIR Motion Sensor/Timer

1.Using imported Philips LED chips, single lumen up to 210lm/w;

2.Large-area aluminum lamp holder has excellent heat dissipation, silicone ring sealing, and good waterproof performance;
3.The lens uses high-quality PC material, anti-ultraviolet, anti-aging, light transmittance up to 93%, professional secondary optical design, make the light more uniform and wider area.

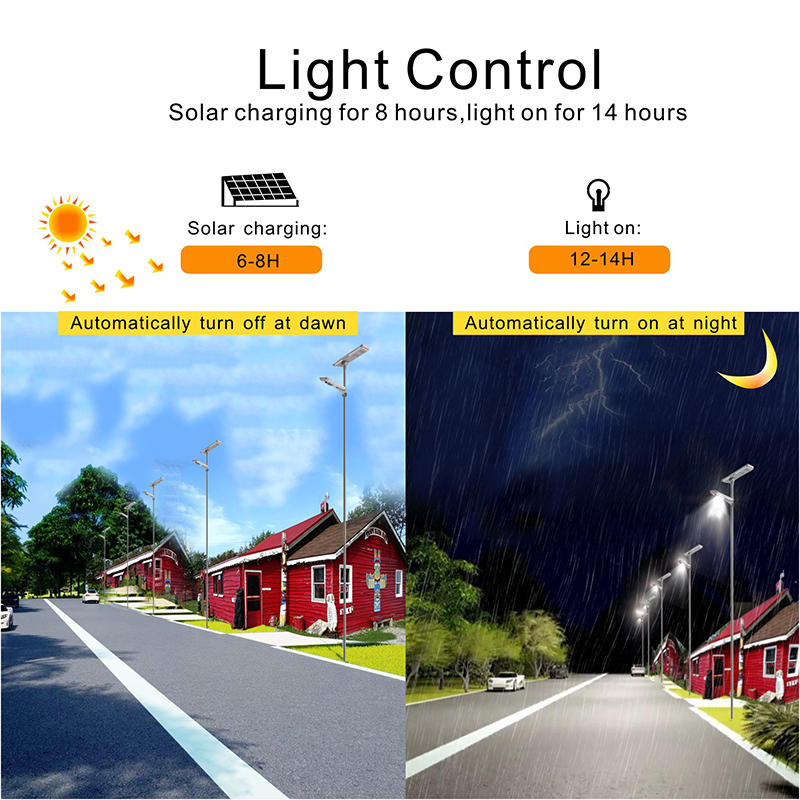

4.Large system configuration and intelligent power control, realize 365 days of lighting.

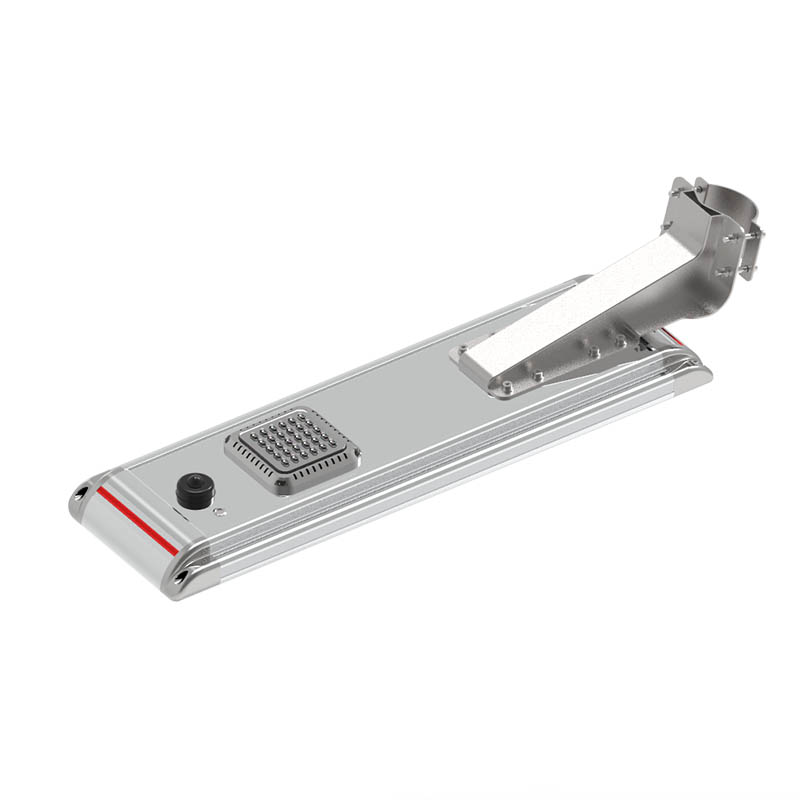

5.Aviation aluminum integrated lamp head.

6.Hoop installation.

7.No lamp arm required.

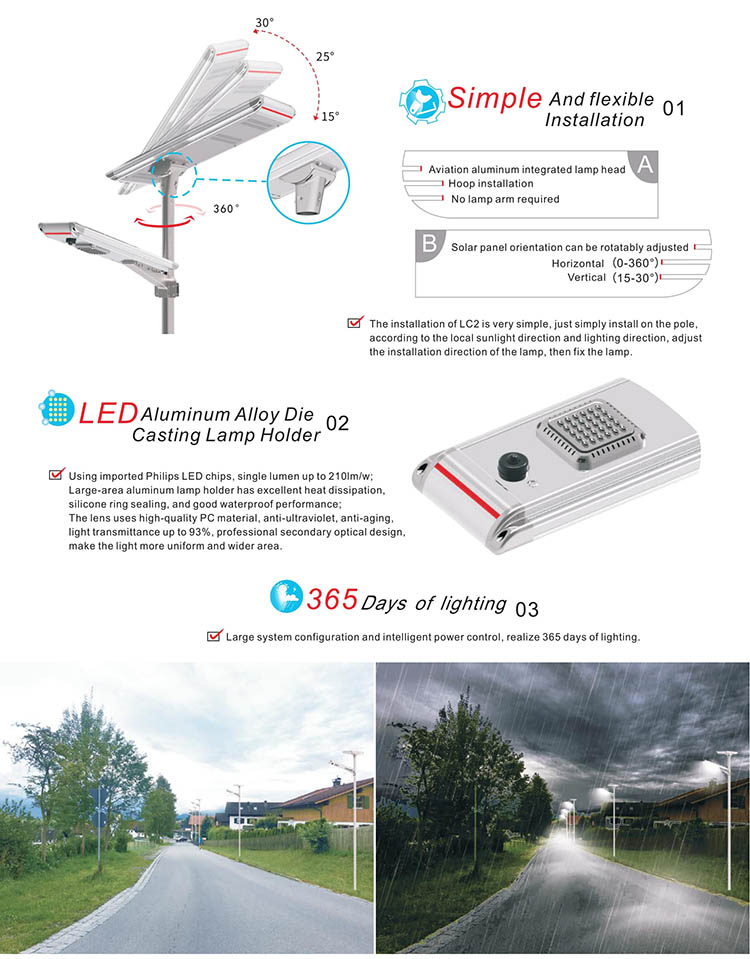

8.Solar panel orientation can be rotatably adjusted:

Horizontal (0°~ 360°)

Vertical (15°~ 30°)

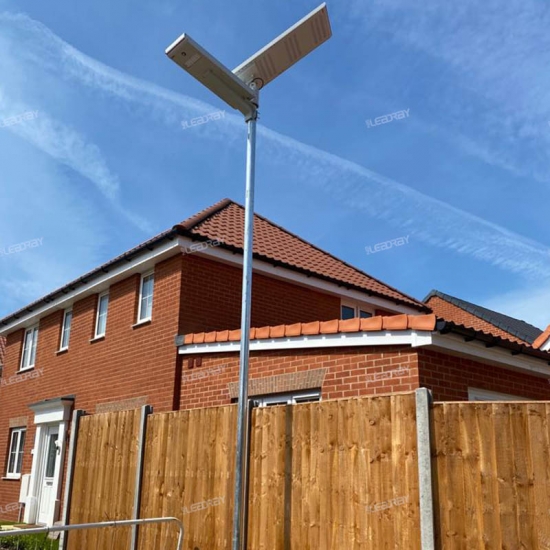

Outdoor waterproof 40w all in one solar led street light integrated motion sensor lamp


 all in one solar led street light integrated motion sensor lamp




Model
LC2-20W
LC2-30W
LC2-40W
Physical Parameters
LED Brand
PHILIPS
PHILIPS
PHILIPS
LED Qty(pcs)
50 100 100
Power of PV Module(W)
18V 80W
18V 110W
18V 130W
LIFEPO4
Battery Capacity(Ah)
12.8V 460Wh
12.8V 615Wh
12.8V 619Wh
Light Mode
PIR
Time Control
Time Control

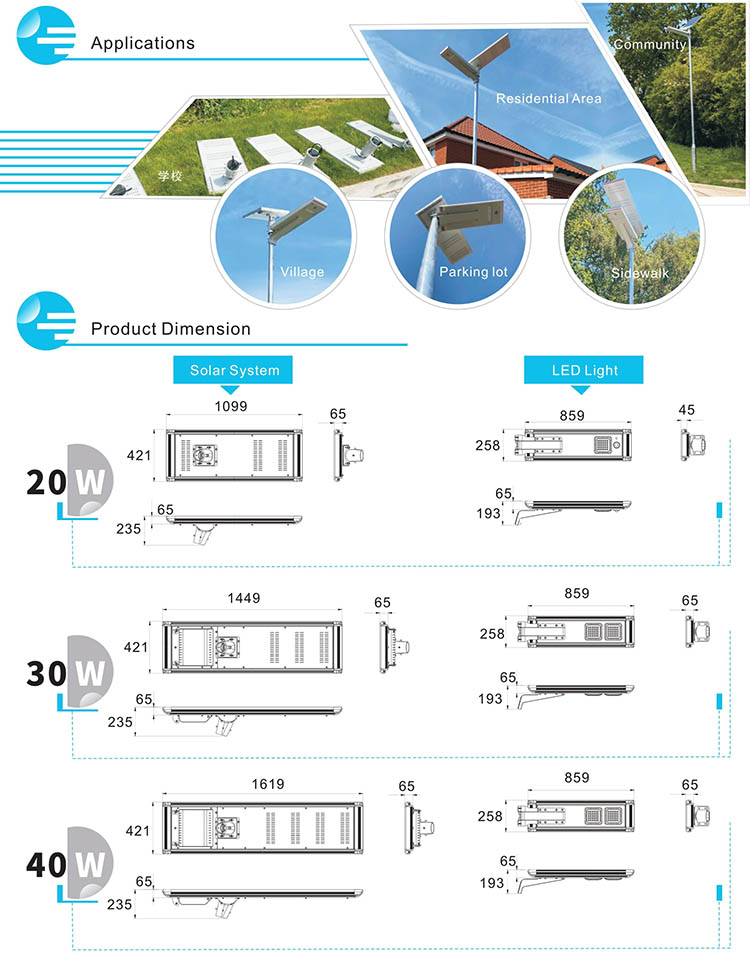

Product Dimension(mm)
Lamp 1
1099*421*65
1449*421*65
1619*421*65
Lamp 2
859*258*65
Product N.W.(kg)
/ / /
Carton #1/Lamp 1
Dimension(mm)& G.W.
1160*180*490
 (12KG)
1510*180*490
 (14.5KG)
1675*180*490
 (12KG)
Carton #2/Lamp 2
Dimension(mm)& G.W.
995*315*255 (0.6/Kg)
Carton #3/Accessories
Dimension(mm)& G.W.
215*2155*210 (3Kg)
Light Parameters
Light Power(W)
20W 30W 40W
Typical Liminous Flux(Lm)
3600
5400 7200
LED Light Effect(Lm/W)
210Lm/W
Color Temperature(K)
2700-6500
Beam Angle(°)
75°x 150°
Rainy Days(D)
10~15
Environment Parameters
Charging
Temperature(℃)
 0 ℃ to +60 ℃
Discharging
Temperature(℃)
-20 ℃ to +60 ℃
Storage
Temperature(℃)
-20 ℃ to +45 ℃
Installation
Dia. of Top Pole (mm)
89 89
89
Installation Height(m) 4~6
5~7
6~8
Installation Distance (m)
 15~20
 20~25
 25~30

 all in one solar led street light integrated motion sensor lamp


 all in one solar led street light integrated motion sensor lamp

 all in one solar led street light integrated motion sensor lamp

 all in one solar led street light integrated motion sensor lamp

 all in one solar led street light integrated motion sensor lamp


Smart Control System SMD Aluminum Outdoor Waterproof IP65 20W 30W 40W warm white Integrated All In One Solar LED Street Light.
