IP65 Waterproof Luminous Flux 10800Lm 30W-120W Outdoor Solar Street Light System
All In One Solar Street Light: Integrated Design/Free Maintenance/Easy Installation/Environmental Friendly.
-
High lumen Integrated remote control ip65 outdoor waterproof 20w 40w 60w all in one led solar street light
Elegant Integrated Design,High class Aluminum alloy case Easy maintenance, battery replacement can be completed on the lamp pole
-
LED Solar Street Light Price 150W High Lumens Solar Motion Sensor Light
Lamp Power:150-200W Solar Panel Power:180-260W Battery Capacity:1075-1536Wh PIR Motion Sensor Original Integrated concept, Double arc streamline Element Design; Innovative Battery Protection System; LED Modular Thermal Design; Typhoon Resistant。 CREE LED without gold wire packaging, creates a first-class light source; Rectangular beam design, with bat wing light distribution; 170Lm/W, 30% brighter than other similar products; Longer working hours, 15% longer than other similar products. The well optimized light distribution, made for a more uniform and wider lighting area; Lens with exhaust valve, prevent water vapor gathered & makes longer lifespan; Original thermal system design, innovative heat sink with IP67 PG head.
-
Rechargeable Portable LED Work Light 100W Equivalent Waterproof LED Flood Lights for Outdoor Camping
Lighting solutions service: Lighting and circuitry design, Onsite metering, DIALux evo layout, LitePro DLX layout, auto CAD layout, Agi32 layout, Project Installation
Model No. :
LRC-I40WLED brand :
LEADRAYLED Power :
40WSolar Panel Power :
60WBattery Type :
Lithium LiFePO4 BatteryInfrared senor :
AvailableColor :
SilverPort Of Dispatch :
QingdaoPayment :
T/T, Paypal, Western UnionOriginal Region :
ChinaLead Time :
3~5 days for samples;15~20 days for bulk

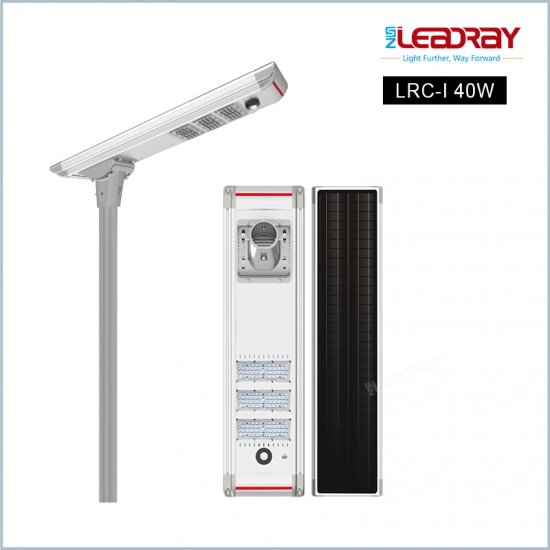

Leadray PIR Sensor Smart Outdoor Lights Waterproof Ip65 40w APP Remote Control Motion Sensor Bright Solar Led Street Lamp Light.
China Best Outdoor Waterproof Integrated Solar Power Street Light Led Smart control with cell phone APP.
40W All In One Exterior All Wattage Outdoor Led Ip65 Lamp Focos Solar Street Light
2.Innovative structure design, adjustable installation angle, easy maintenance.
3.Smart control with cell phone APP, Bluetooth MESH networking.
5.Supporting MESH networking, Max. 65000pcs devices Ad-Hoc networking.
6.Military grade LiFePO4 Battery, High Safety and stability.
7.Constant current driving, Stable current output.
8.Dual charge and discharge management, temperature protection, military grade IC chip control.
Mobile phone APP control, with BEL5.0 MESH networking function,Neighboring devices form their own LAN and communicate with each other and achieving ultra remote control (optional).
Model |
LRC-I20W |
LRC-I30W |
LRC-I40W |
LRC-I60W |
LRC-I80W |
Physical Parameters |
|||||
LED Brand |
PHILIPS |
PHILIPS |
PHILIPS |
PHILIPS |
PHILIPS |
LED Qty(pcs) |
36 | 72 | 108 | 144 | 180 |
Power of PV Module(W) |
35W |
50W |
60W |
70W |
90W |
LiFePO4
Battery Capacity
|
225Wh |
307Wh |
346Wh |
46.8Wh |
460.8Wh |
Light Mode |
PIR/Time Control |
PIR/Time Control |
PIR/Time Control |
PIR/Time Control |
PIR/Time Control |
Product Dimension (mm) |
679.5*258*65 |
859.5*258*65 |
1589.5*258*65 |
999.5*258*65 |
1229.5*258*65 |
Product N.W.(kg) |
9.3 | 10.3 | 11.3 | 13.3 | 15.3 |
Package #1 Dimension(mm)& G.W. (1 Lamps/CTN) |
735*315*200
(10.6KG) |
915*315*200
(11.5KG) |
1055*315*200
(12.6KG) |
1285*315*200
(15KG) |
1645*315*200
(17KG) |
Package #2 Dimension(mm)& G.W. (1 Bracket/CTN) |
215*215*210
(1.3KG) |
||||
Light Parameter |
|||||
Light Power(W) |
20W |
30W |
40W |
60W |
80W |
Tyical Liminous
Flux(Lm)
|
3200 | 4800 | 6400 | 9600 | 12800 |
LED Light Effect (Lm/W) |
210Lm/W |
||||
Color Temperature(K) |
2700-6500 |
||||
Beam Angle(°) |
150°x 80° |
||||
Rainy Days(D) |
3~5 |
||||
Environment Parameter |
|||||
Charging
Temperaure(℃)
|
0℃~ +60℃ |
||||
Discharging Temperature(℃) |
-20 ℃ to +60 ℃ |
||||
Storage
Temperature(℃)
|
-20 ℃ to +45 ℃ |
||||
Installations |
|||||
Dia. of Top Pole (mm) |
60~76 |
60~76 |
60~76 |
60~76 |
60~76 |
Installation Height(m) |
3~5 |
4~6 |
5~7 |
7~8 |
7~59 |
Installation Distance (m) |
10~20 |
15~25 |
20~30 |
25~35 |
30~40 |
Smart Control System
Quantity(pieces) | 1 - 5 | 6 - 200 | 201 - 1000 | >1000 |
Est. Time(days) | 10 | 20 | 25 | To be negotiated |
4. Exclusive agents in local country are welcomed
Q1. Can I customize the light hours and brightness of the all in one LED solar street light product?
A1: Yes, our professional engineers will make the setting according to your requirements.
Q2. Can I have the all in one LED solar street light product without the sensor?
A2: Yes, All the LED solar street lights in all wattage can be made without the sensor, we will set timer-control for the lamps.
Q3. Can I use the all in one LED solar street light product on the islands?
A3: Yes, they are Anti-Tyhpoon/hurricane design with anti-rust treatment, which can be used in harsh environments such as islands, coasts, and lakeside.
Q4. Can I have a sample order for the all in one LED solar street light product?
A4: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q5. What about the lead time?
A5:We could send sample for you within 7 working days, mass production time needs 1-2 weeks for order quantity more than 200pcs.
Q6: Do you offer guarantee for the products?
A6: Yes, we offer a standard 3-year warranty to our all in one LED solar street light product, a 5-year warranty is optional.
Q7. How do you ship the goods and how long does it take to arrive?
A7: We usually ship by DHL, UPS, FedEx or TNT for sample orders. It usually takes 3-5 days to arrive. Airline and sea shipping is preferable for bulk order.
