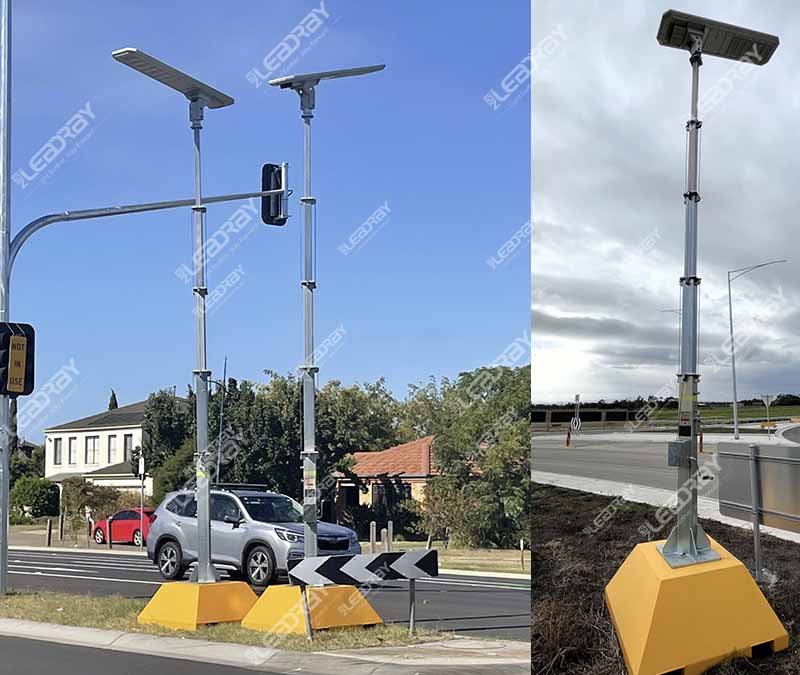

2024 Solar Outdoor Lighting Project

Aluminum Solar Outdoor Lighting Integrated 60w Waterproof street light solar power 60w solar led street light all in one with pole

2024-02-27

Application：street/roadway/parking lot/community/Industry park/playground solar garden light led solar street lamp for outdoor in smart city.

Aluminum Solar Outdoor Lighting Integrated 60w Waterproof street light solar power 60w solar led street light all in one with pole.

LRC-H Series LED Solar Street Light

Features & Specification
Solar Panel	Max Power	18V 90W
	Type	Monocrystalline
	Lifespan	25 years
Battery	Type	Lithium LiFePO4 battery
	Capacity	12.8V 460.8Wh
	Lifespan	8-10 years
LED Source	Max Power	12V 60W
	Luminous Flux	10800Lm(TYP)
	Lifespan	50,000hrs
	Color Temperature	2700-6500K
	CRI	>75Ra
	Beam Angle	150x80°
Charge Time	By Strong Sunshine	6-8 hours
Lighting Time	Full Power	12-14hours
Lighting Time	30% saving mode	39 hours (3~5 rainy days)
Lighting Mode	PIR Sensor: 30% brightness when no motion, 100% Brightness whe motion dectected.

LRC-H Series LED Solar Street Light

LRC-H Series LED Solar Street Light Features:

PRODUCT OVERVIEW

1.Up-to-day LED Technology with LED Modular Thermal Design.

2.Smart Battery Protection System, More stablequality and longer lifespan.

3.Modular Design,Battery can be drawn out easily .

4.Unique fluorescent decoration design (Color optional)：Green / Red / Blue / Orange.

LRC-H Series LED Solar Street Light

Integrated solar led street lamp is a new kind of solar led street lamp for the road lighting. Its solar panel,LED lamp, controller, battery are all integrated inside the lamp then it is very easy for the installation. In addition, there is a brightness sensor on the lamp.

If the brightness is enough, the solar panel can absorb the solar energy for battery charging, while if the brightness is not enough, the LED lamp will be on automatically and the battery will supply the energy to the lamp for area illumination.

What’s more, the lamp can be customized with motion sensor or time control mode. Its brightness standard can be adjusted by movement or time schedule.

It has solved the problem of complex installation and expensive transportation compared with traditional solar LED street light.Waterproof and replaceable LED modular for easy maintenance.

Integrated Battery Protection System

Military grade LiFePO4 Battery,High Safety and stability

Long lifespan, More than 2000 Battery light cycles

Secure metal structure around battery

Overcharge and over discharge protection

Super Bright LEDS

1.Up to date Super Bright LEDs, Lighting effect up to 210Lm/W.

2.Drive by low current, more energy efficient, Lighting efficiency increased by 40%.

3.Ultra-low light decay, lifespan up to 80,000 hours.

LED Modular System Design

1.Rectangular bat wing light distribution for road lighting Optimized light distribution for a more uniform and wider lighting area.

2.Integrated optical lens design, Light transmittance up to 93%.

3.Customized heat sink, better heat dissipation and waterproof ability.

Time Control

1.The lamp will stay on according to above metioned hours and lighting percentage (12H).

2.It will shift and turn on/off automactically.

Infrared body sensor , Microwave induction

With infrared body induction controlled technology, it can store energy during the daylight,

when people pass through at night it auto modulate on/off.

During the night, the light can work automatically controlled by the smart sensor;

when people pass throught and on energy-saving mode, It will be on bright mode.

(working mode can be adjusted according to client's demands).

LRC-H Series LED Solar Street Light

Easy installations, no electrical bills: solar powered led street lamp, can be mounted on wall or pole, that in direct sunlight for charging.
Motion and light sensor built in:solar led street lamp goes on at dusk at 50% brightness. Can go from 50% power to full brightness when motion is detected.
Three Intelligent Modes: Bright / DIM / Recharge.
1.Bright: motion activates for lighting when motion is detected for security light and to save battery;
2.DIM: 50% lighting for saving power when no motion; 3.Off/Recharge: automatically turns off in daylight and goes into recharge mode.
