Installation Operation for Integrated Solar Billboard Light
- 2018-01-05 11:09:09
Packing accessories
1.With nut gasket screws M6X12------4PCS
2.With nut gasket screws M6X45------4PCS
3.With nut gasket screws M8X16------6PCS
4.With nut gasket screws M8X100-----10PCS
5.U-bolts M8 -----------------------4PCS
6.U-type reed board ----------------4PCS
7.Bracket -------------------------1PCS
8.5#Wrench ------------------------1PCS
9.6#Wrench ------------------------1PCS
10.M8Hexagon wrench ----------------1PCS
How to Installation Operation for Integrated Solar Billboard Light
1, Fixed the bracket to the billboard with welding
2, Plus U-type reed reinforcement
Fix the light source module and tie rod with 4PCS nuts with M6 * 45MM bolt kit as 2-1
Connect light source module female cable and inner frame male cable
Use crane hanging the light.
Attention:
1, Light source upwards
2, When hanging, keep smooth and steady
Put down the light steady
Take out the screw
Pull the rod out to end
As following picture(A1)
Put the lamp holder into the mounting bracket
Insert the M8X16MM bolts with nuts lock
As following picture(A2)
1, Before installing the fixture, it is necessary to evaluate whether the billboard steel structure can withstand the total weight of the lamp to be installed.
2, Whether the installation will affect the wind strength of the billboard. If it can not achieve the safe installation range, need to strengthen the billboard structure or strengthen the intensity of billboards.
1.With nut gasket screws M6X12------4PCS
2.With nut gasket screws M6X45------4PCS
3.With nut gasket screws M8X16------6PCS
4.With nut gasket screws M8X100-----10PCS
5.U-bolts M8 -----------------------4PCS
6.U-type reed board ----------------4PCS
7.Bracket -------------------------1PCS
8.5#Wrench ------------------------1PCS
9.6#Wrench ------------------------1PCS
10.M8Hexagon wrench ----------------1PCS
How to Installation Operation for Integrated Solar Billboard Light

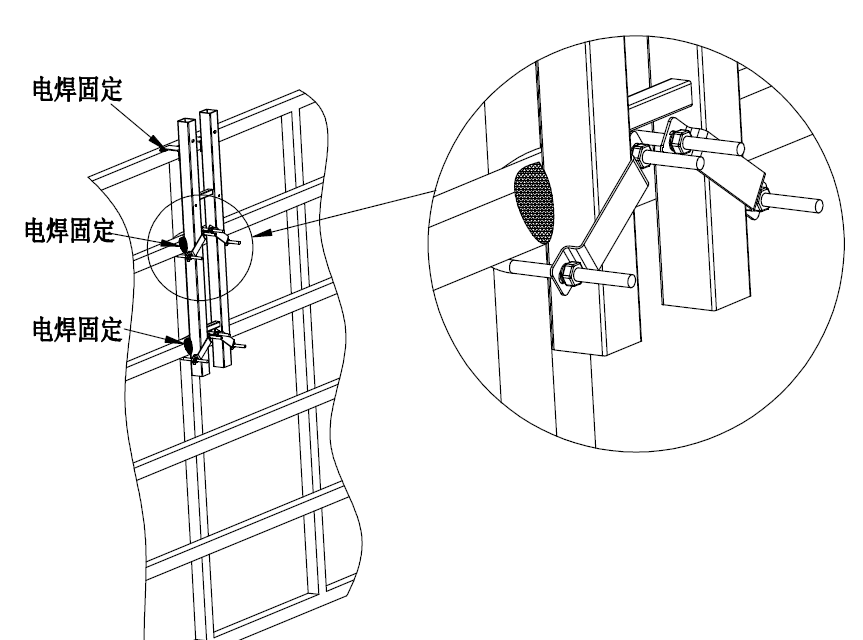

1, Fixed the bracket to the billboard with welding
2, Plus U-type reed reinforcement

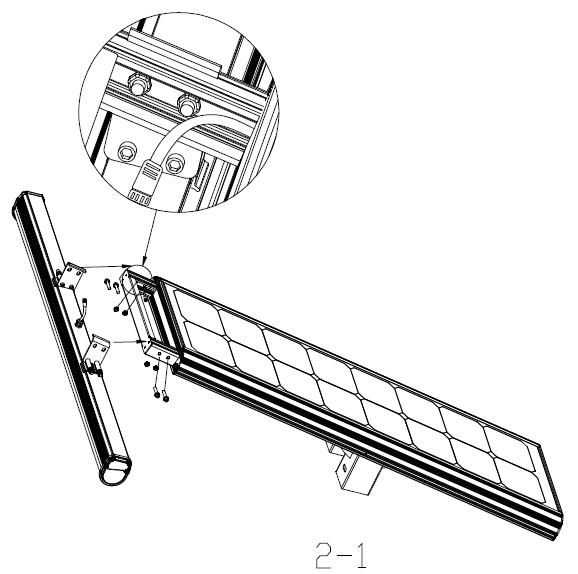

Fix the light source module and tie rod with 4PCS nuts with M6 * 45MM bolt kit as 2-1

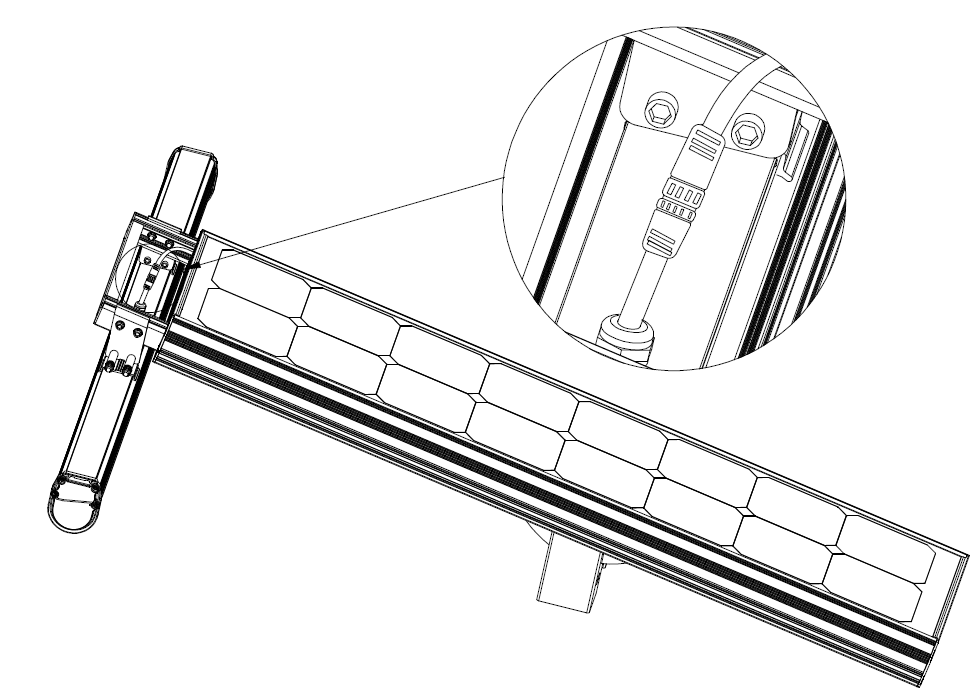

Connect light source module female cable and inner frame male cable

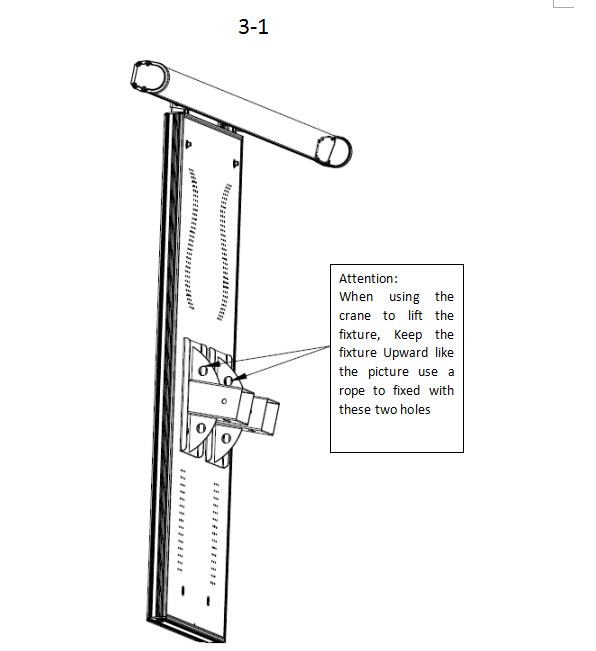

Use crane hanging the light.
Attention:
1, Light source upwards
2, When hanging, keep smooth and steady
3, Cannot stand people under the crane with light
Put down the light steady

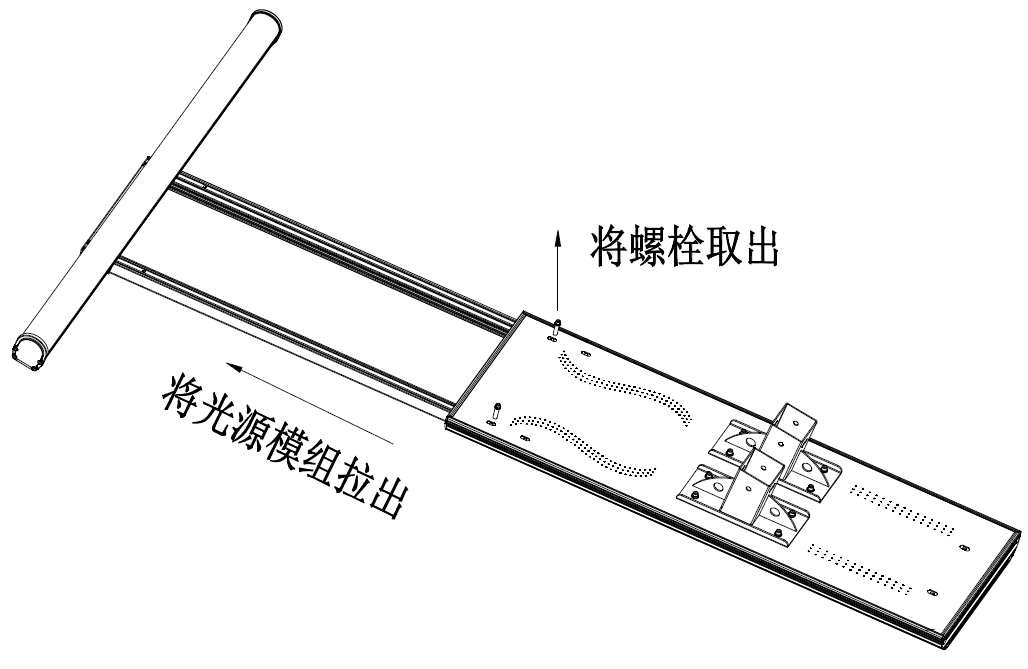

Take out the screw
Pull the rod out to end

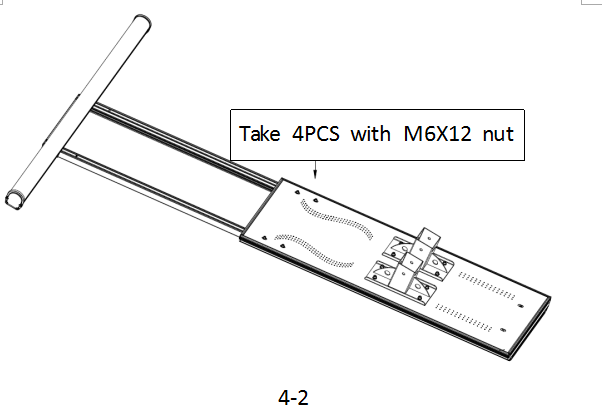

Take 4PCS with M6X12 nut gasket bolts fixed as 4-2

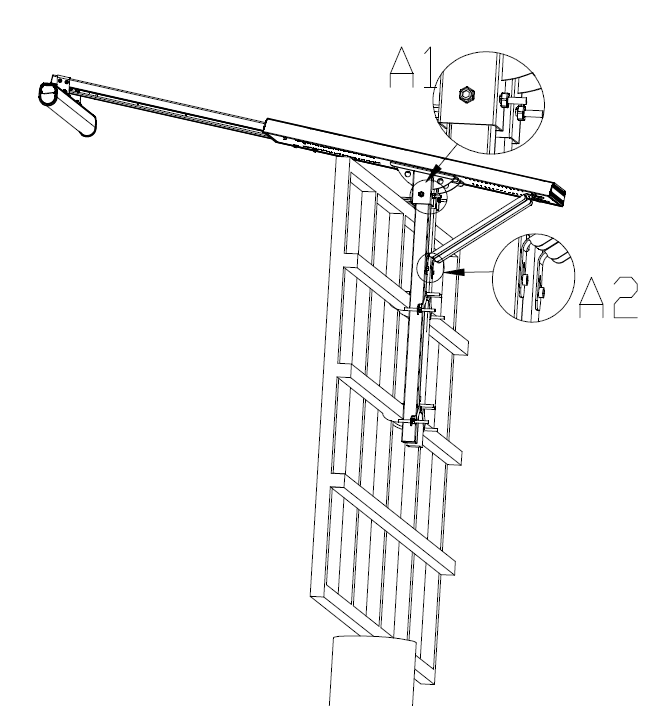

As following picture(A1)
Put the lamp holder into the mounting bracket
Insert the M8X16MM bolts with nuts lock
As following picture(A2)
Use M8 * 16 bolts to fasten the support plate at both ends to connect the lamp and bracket
1, Before installing the fixture, it is necessary to evaluate whether the billboard steel structure can withstand the total weight of the lamp to be installed.
2, Whether the installation will affect the wind strength of the billboard. If it can not achieve the safe installation range, need to strengthen the billboard structure or strengthen the intensity of billboards.
